Weidmuller 1883461500

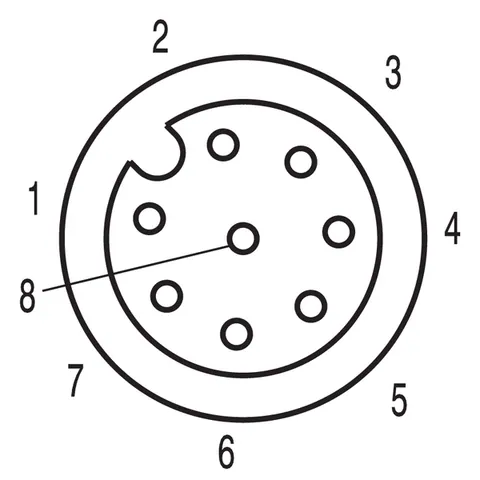

The SAIL-M12BW-8-15U connector features an angled socket design suitable for various industrial applications. This connector adheres to the IEC 61076-2-101 standard and exhibits a protection degree of IP67 when properly secured. The device supports a rated voltage of 30 V and a rated current of 2 A, ensuring reliable operation within its specified limits.

The cable, constructed from PUR sheath material, is 15 meters in length and has a core cross-section of 0.25 mm² with 8 poles. It is unshielded and designed to withstand an operating temperature range of -25 to +80 °C, suitable for both stationary and moving applications. The minimum bending radius for stationary use is five times the cable diameter, while for moving applications, it is ten times the diameter.

Additional features include a gold-plated contact surface and a tightening torque specification of 0.8 to 1.2 Nm. The connector is compliant with various environmental regulations, including REACH and ROHS, and has undergone rigorous testing for durability, with a minimum of 100 plugging cycles.
