Siemens

6SL3210-1KE31-7AF1

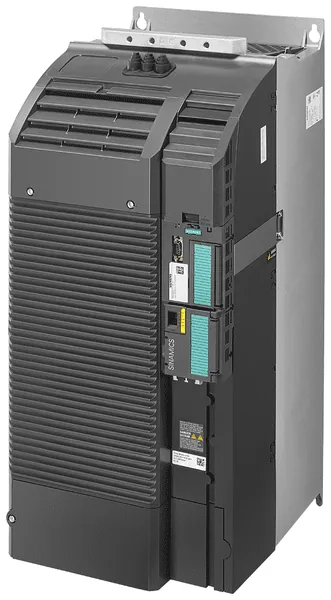

SINAMICS G120C PN 90.0KW FILA
6SL3210-1KE31-7AF1
  • Get up to 90 days payment terms from 500+ suppliers
  • Reselling discounts up to 40%!
Sign-Up
Send request for price
1
Payment methods:
A total of 24 Parts In-Stock from 25 Distributors

Description

ActiveRoHS Compliant
SINAMICS G120C RATED POWER 90.0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI. 2DO. 1AI. 1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSF 708x 305x 357(HXWXD) EXTERNAL 24V

Additional Information

Part Number
6SL3210-1KE31-7AF1
UPC
804766375569
Tariff Code
8504409540
Country of Origin
DE
ETIM
Group Code : EG000017
Group Description : Low-voltage Industrial Components
Class Description : Frequency converter =< 1 kV
Class Code : EC001857
Version : 7

Specifications

Country of Origin
DE
Depth
357 mm
Width
305 mm
Height
708 mm
Mains voltage
380 V
With PC connection
true
Max. output voltage
480 V
Number of phases input
3
Number of phases output
3
Number of digital inputs
6
Max. output frequency
550 Hz
Number of analogue inputs
1
Number of digital outputs
2
Number of analogue outputs
1
Number of HW-interfaces USB
1
Type of converter
U converter
Degree of protection (IP)
IP20
Nominal output current I2N
164 A
Number of HW-interfaces other
6
Number of interfaces PROFINET
2
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces parallel
0
Integrated breaking resistance
true
Number of HW-interfaces serial TTY
1
Supporting protocol for PROFIsafe
true
Supporting protocol for EtherNet/IP
true
Supporting protocol for PROFINET IO
true
Application in industrial area permitted
true
Number of HW-interfaces industrial Ethernet
2
Relative symmetric net frequency tolerance
5 %
Relative symmetric net voltage tolerance
-20 %
Supporting protocol for other bus systems
true
Max. output at linear load at rated output voltage
75 kW
Max. output at quadratic load at rated output voltage
90 kW
Application in domestic- and commercial area permitted
true
