Schneider Electric BCH2HF0733CF5C
servo motor BCH2, Lexium 28, 750W, 80mm, 1.59kg.cm²
1 / 1

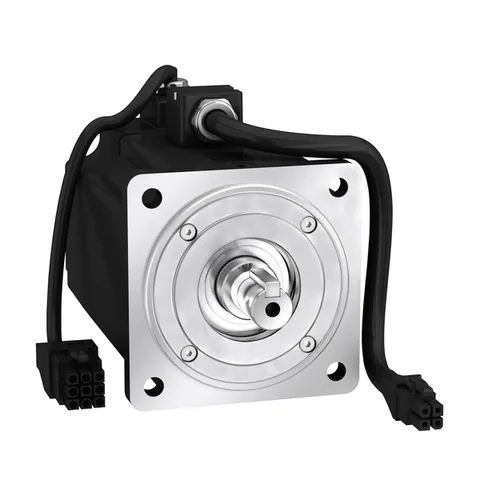

Katalogbild des Herstellers
Produktbeschreibung
Lebenszyklus:
The servo motor BCH2 is a key component of the Lexium 28 series, providing efficient motion control for machines requiring power from 0.05 to 4.5kW. This motor features a maximum mechanical speed of 5000 RPM and is equipped with a 20-bit single-turn absolute encoder optimized for a nominal speed of 3000 RPM. It has a rated supply voltage of 220V and a continuous stall current of 4.01A, ensuring reliable performance.
With a holding torque of 2.5 N.m and a rotor inertia of 1.59 kg.cm², the motor is suitable for a variety of applications. The dimensions include a length of 178mm and a width of 80mm, with a keyed shaft measuring 19mm in diameter and 35mm in length. It is designed to operate at ambient temperatures between 0 and 40 °C and has an IP65 protection rating, making it suitable for harsh environments.
This product is compatible with various servo drives, including Lexium 28 and Lexium 26D, and supports an Asian standard 80mm flange mount. The motor is equipped with a holding brake and utilizes natural convection for cooling, making it an ideal choice for compact systems that require precise motion control.
Anfrage senden
Zahlungsmethoden:
Angebotsdetails
- Bestes Angebot von:
Vertrauenswürdiger Lieferant — Rumänien, Mitglied seit 2023, 1–4 Mitarbeiter- Verfügbarkeit:
- 1 Stk.Auf AnfrageAktualisiert am: 22-08-2026
- Zustand:
- Neuer Überschuss
Neuer Überschuss - Ein neuer, unbenutzter, unbeschädigter Artikel ohne Herstellergarantie. Der Artikel kann ohne Originalverpackung oder in Ersatzverpackung geliefert werden. Wenn vorhanden, könnte die Verpackung geöffnet worden sein.
Der Verkäufer ist verantwortlich für den Versand des Produkts und die Rechnungsstellung
Spezifikationen
- Marke
- Schneider Electric
- Maximum Permanent Current
- 4.29 A
- Continuous Power
- 750 W
- Maximum Mechanical Speed
- 5000 rpm
- Product Compatibility
- LXM26D servo drive 0.75 kW, 220 V, single phase || LXM26D servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single phase
- Stator Electrical Time Constant
- 4.07 ms 20 °C
- Holding Torque
- 2.5 N.m built-in
