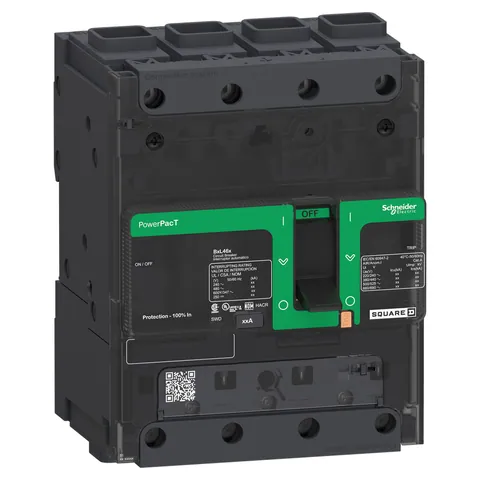

Schneider Electric BDF46100

The PowerPacT B-Frame circuit breaker delivers reliable thermal-mechanical protection within a compact design. With a breaking capacity of 14kA at 600Y/347VAC and a continuous current rating of 80%, this device is suitable for various electrical distribution applications.

The circuit breaker incorporates dual-break rotating contacts that minimize peak current during short circuit conditions. A manual push-to-trip button is integrated into the cover for user convenience. The unit is available in both 1 to 4-pole unit mount and 1 to 3-pole I-Line configurations, accommodating different installation preferences.

Installation options include traditional back pan mounting with screws or clip-on mounting to a 35 mm DIN rail. The circuit breaker has terminal nuts on both termination ends, enhancing connection reliability. The PowerPacT B complies with UL, CSA, NOM, and IEC standards, ensuring adherence to safety and performance requirements.

For added versatility, the breaker features slots for auxiliary components, including a plug-in auxiliary switch and alarm switch. The product's dimensions are 137 mm (H) x 108 mm (W) x 80 mm (D), with a weight of 1.241 kg.
