Schneider Electric
GVAE1

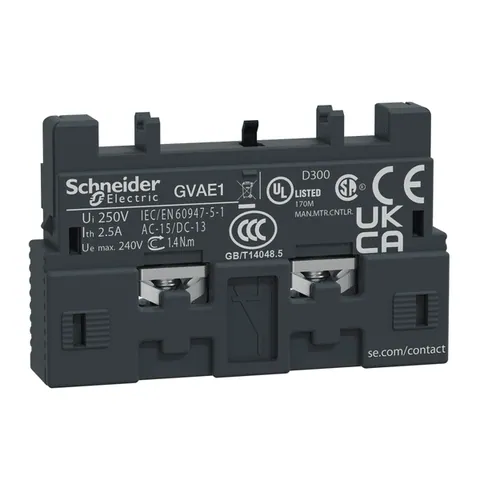

TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO or NC, top mount, screw clamp
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€4.95
1
Zahlungsmöglichkeiten:
Insgesamt 571 Parts In-Stock von 37 Distributors
Produktbedingungen:
Additional Information
- Part Number
- GVAE1
- UNSPSC
- 39121522
- Tariff Code
- 8536509065
- Country of Origin
- CZ
Environment
- Product Certifications
- UKCA
- Environmental Characteristic
- normal environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2207006
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
Complementary
- Minimum Switching Current
- 5 mA
- Height
- 11 mm
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- [Ue] Rated Operational Voltage
- 24...240 V AC || 24...60 V DC
- Protection Type
- gG fuse 10 A || GB2CB06 circuit breaker 10 A
- Net Weight
- 0.02 kg
- [Ui] Rated Insulation Voltage
- 300 V UL 508 || 300 V CSA C22.2 No 14 || 250 V IEC 60947-1
- Minimum Switching Voltage
- 17 V
- Tightening Torque
- 1.4 N.m screw clamp terminals
- Rated Operational Power In Va
- 120 VA 110-120 V AC-15 100000 cycles || 120 VA 230-240 V AC-15 100000 cycles || 48 VA 24-24 V AC-15 100000 cycles || 60 VA 48-48 V AC-15 100000 cycles
- Mechanical Durability
- 100000 cycles
- Width
- 45 mm
- Depth
- 29 mm
- Rated Operational Power In W
- 15 W 48 V DC-13 100000 cycles || 24 W 24 V DC-13 100000 cycles || 9 W 60 V DC-13 100000 cycles
Specifications
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys || TeSys Deca
- Mounting Location
- front side
- Pole Contact Composition
- 1 NO/NC
- Quantity Per Set
- set of 10
- Product Compatibility
- GV2L || GV2P || GV2RT || GV3P || GV3L || GV2LE || GV2ME
- Device Short Name
- GVAE
