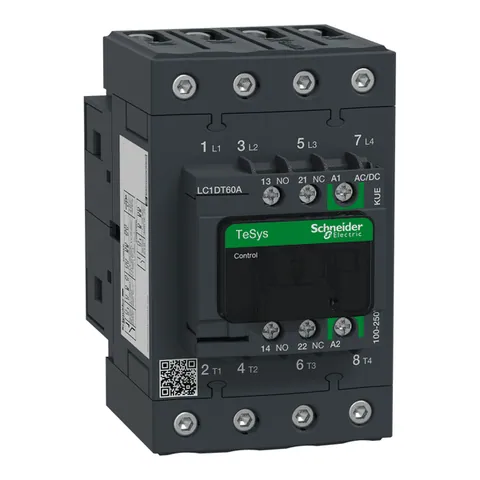

Schneider Electric LC1DT60AKUE

The IEC contactor designed for resistive loads supports a maximum current of 60A and features four normally open power contacts. With a coil voltage range of 100-250V AC/DC, it is capable of being integrated into various control systems. This model, part of the TeSys Deca range, is certified to multiple standards including UL, CSA, and IEC, ensuring compliance with international safety and performance requirements.

Measuring 4.80 inches in height, 2.76 inches in width, and 4.72 inches in depth, the contactor's compact design allows for flexible installation options, either on DIN rail or directly onto a panel. Its net weight is 2.40 lbs (1.230 kg). This unit features an electronic coil with low power consumption, allowing it to operate efficiently across a broad voltage range.

The contactor includes both one normally open and one normally closed auxiliary contact as standard, with mirror certification for the NC contact. These contacts have a non-overlap time of 1.5 ms during energization and de-energization, enhancing operational reliability. The device also utilizes screw clamp terminals for secure load and auxiliary connections, and it supports a wide range of accessories to meet various application needs.

Operating in ambient temperatures from -40 to 60 °C, or up to 70 °C with derating, the contactor is built to withstand harsh environmental conditions, including exposure to damp heat as per IACS E10 and IEC 60947-1 standards. The mechanical robustness is rated for...
