Schneider Electric
METSECTR60500

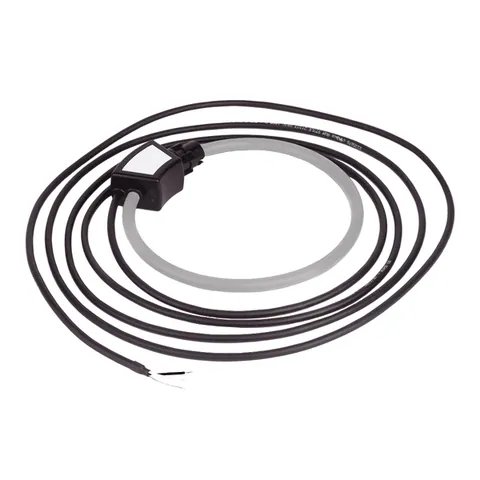

PowerLogic - Ropestyle current tranformer - 5000 A - d=191 mm - lead=2.4 m
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Preisanfrage senden
1
Zahlungsmöglichkeiten:
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:1 - 2 Viele Arbeitstage
Bester Preis:
€80.33
Additional Information
- Part Number
- METSECTR60500
- UNSPSC
- 83101808
- Tariff Code
- 8504312000
- Country of Origin
- IT
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
Complementary
- Network Frequency
- 50 Hz
- Electrical Connection
- flying lead 2.4 m600 V
- Pollution Degree
- 2
- Frequency Measurement Range
- 50-1500 Hz
- Thickness
- 8 mm
- Measurement Current
- 50-5000 A
- Measurement Accuracy
- 1 %
- Height
- opened 600 mm
- Diameter
- closed 191 mm
- Installation Category
- IV
Environment
- Product Certifications
- CE || cURus || UL Recognized
- Ambient Air Temperature For Operation
- -15-60 °C
- Standards
- UL 61010-2-032 || ANSI/IEEE C57.13 || EN 61010-1 || UL 61010-1 || EN 61010-2-032
- Ip Degree Of Protection
- IP67
- Relative Humidity
- 0-95 %
- Ambient Air Temperature For Storage
- -40-70 °C
Specifications
- Range Compatibility
- Acti 9 Acti9 iEM3000 iEM3555 || Acti 9 Acti9 iEM3000 iEM3565 || PowerLogic PowerLogic EM4200 EM4235 || PowerLogic PowerLogic EM4200 EM4236 || PowerLogic PowerLogic EM3500 EM3502A || PowerLogic PowerLogic EM3500 EM3550A || PowerLogic PowerLogic EM3500 EM3555A || PowerLogic PowerLogic EM3500 EM3560A || PowerLogic PowerLogic EM3500 EM3561A
- Accessory / Separate Part Category
- measurement accessory
- Product Or Component Type
- current transducer
- Range
- PowerLogic
- Current Transformer Type
- flexible core
Dokumente
Data Sheet
