Schneider Electric
XB4BG21GEX
1 / 1
Beschreibung
Aktiv Reif

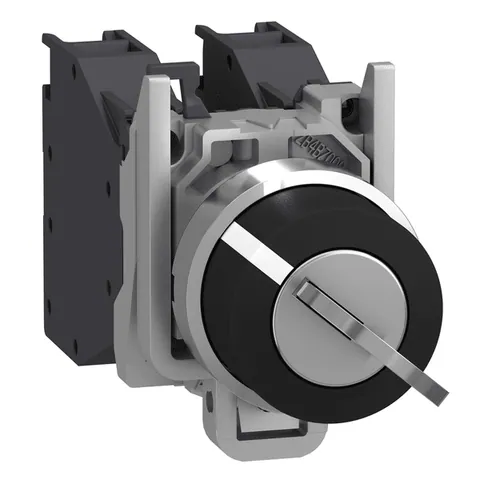

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This key selector switch comes with key number 455 and key withdrawal in left-hand position. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 2 operating positions and operates with a stay-put mechanism. It has 1 NO contact with slow-break operation. This metal key selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.- Country of Origin
- FR
- Part Number
- XB4BG21GEX
- Tariff Code
- 85365080
- EAN
- 3606489485757
- UNSPSC
- 39122217
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Preisanfrage senden
1
Zahlungsmöglichkeiten:
Specifications
- Key Number
- 455
- Range Of Product
- Harmony XB4
- Dust Zone
- zone 21 - 22
- Mounting Diameter
- 22 mm
- Type Of Operator
- stay put
- Product Or Component Type
- complete selector switch
- Fixing Collar Material
- zamak
- Gas Zone
- zone 1 - 2
- Contacts Type And Composition
- 1 NO
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Operator Profile
- key switch
- Device Short Name
- XB4
Complementary
- Contacts Usage
- standard contacts
- Height
- 30 mm
- Embedding Depth
- 58 mm
- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm
- Positive Opening
- without
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Shape Of Signaling Unit Head
- round
- Marking
- II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb
- Net Weight
- 0.159 kg
- Key Withdrawal Position
- left-hand
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- [Ui] Rated Insulation Voltage
- 415 V
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- Contact Operation
- slow-break
- Operator Position Information
- 2 positions 90°
- Mechanical Durability
- 5000000 cycles
- Width
- 46.2 mm
- Depth
- 110 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Device Mounting
- fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- INERIS 04ATEX9004U
- Ambient Air Temperature For Operation
- -20-75 °C
- Standards
- IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
