Siemens
6SL3210-1PH26-2UL0

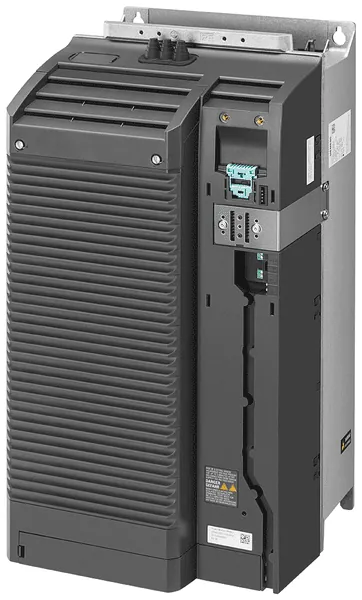

SINAMICS PM240-2 IP20-FSE-U-690V-55KW
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€7,271.00
1
Zahlungsmöglichkeiten:
Produktbedingungen:
Beschreibung
AktivRoHS-konform
SINAMICS g120 power module pm240-2 without filter with built in braking chopper 3AC500-690v +10/-20% 47-63HZ output high overload 45KW for 200% 3s,150% 57s,100% 240s ambient temp -20 to +50 deg c (ho) output low overload 55KW for 150% 3s,110% 57s,100% 240s ambient temp -20 to +40 deg c (lo) 551 x 275 x 237 (hxwxd), fse protection IP20 without control unit and panel approved for cu firmware- version v4.7 hf8Additional Information
- Part Number
- 6SL3210-1PH26-2UL0
- UPC
- 804766091070
- Tariff Code
- 8504409540
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Brand
- SINAMICS
- Depth
- 237 millimetre
- Width
- 275 millimetre
- Height
- 551 millimetre
- Input phase number
- 3
- Net weight
- 26 kilogram
- Protection type IP
- IP20
- Output phases, number of
- 3
- Max. mains voltage
- 690 volt
- Min. network voltage
- 500 volt
- Rated output voltage
- 690 volt
- Brake chopper integrated
- true
- Rated output current
- 62 ampere
- Max. output frequency
- 550 hertz
- Description of product type
- PM240-2
- Design of frequency changer
- U converter
- Power loss, static, current-independent [Pls]
- 37 watt
- Relative symmetric mains voltage tolerance
- 10 percent
- Relative symmetric mains frequency tolerance
- 5 percent
- Max. output power with square load at rated output voltage
- 55 kilowatt
- Max. output power with linear load and rated output voltage
- 45 kilowatt
- Country of Origin
- DE
