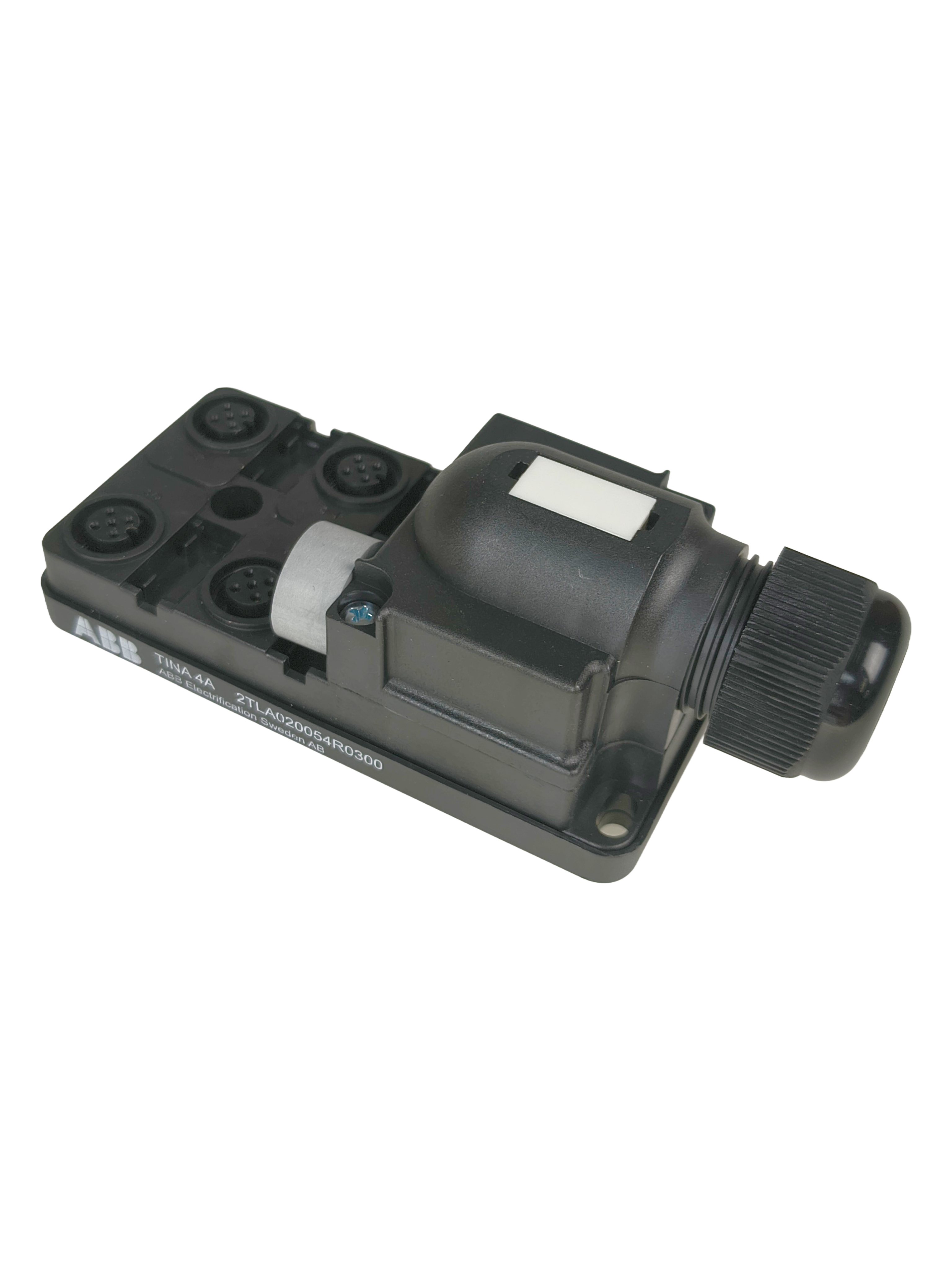

ABB 2TLA020054R0300

The ABB Tina 4A Connection Block is designed for series connection of up to four DYNlink devices. It features four M12-5 female connectors for sensors and allows the separate wiring of each device's information signal. The cable used for connecting to the Tina 4A should have a diameter ranging from 7 to 12 mm. Unused M12-connectors on the Tina 4A must be equipped with ABB Tina 1A blind plugs.

The Tina devices are compatible with DYNlink safety circuits in Vital, Pluto and B&R X20, adapting them to safety components such as E-stops, switches, and light beams/curtains with dual outputs. The Tina is available in various versions depending on the type of safety component connected to the Vital, Pluto or B&R X20 circuit.
