Eaton 276344

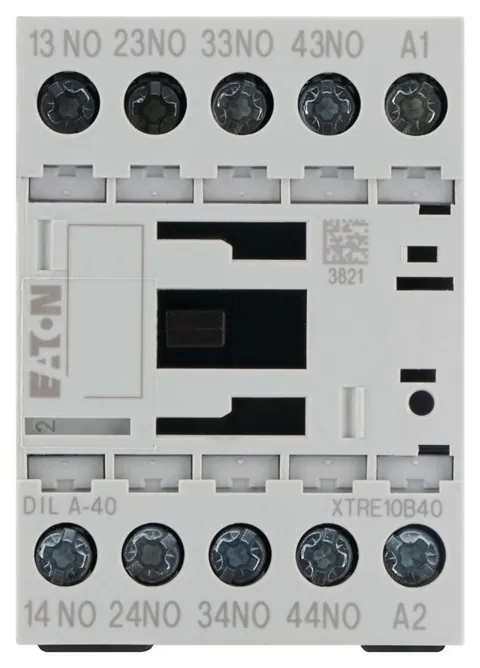

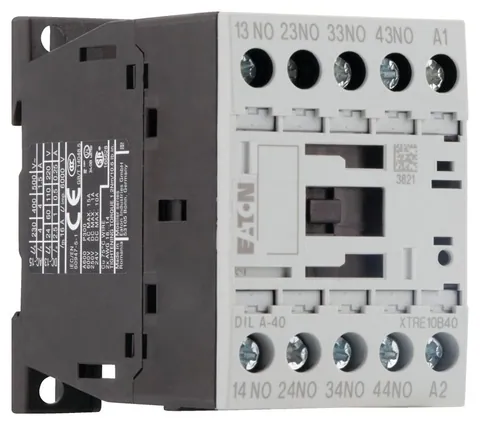

Eaton DILA-40(24VDC) Contactor Relay
1 / 4
Imagen de catálogo del fabricante
Imagen de catálogo del fabricante
Imagen de catálogo del fabricante
Descripción del producto
The Eaton DILA-40(24VDC) Contactor Relay is a versatile and robust solution designed for industrial control applications. This relay operates on a 24V DC supply and features 4 normally open (N/O) contacts, making it ideal for various automation tasks. The relay is equipped with screw terminals for secure and easy connections, ensuring reliable performance in demanding environments.
One of the key benefits of the DILA-40 relay is its positive operating contacts that comply with EN 60947-5-1 appendix L, providing enhanced safety and reliability. Additionally, the built-in suppressor circuit helps to protect the relay from voltage spikes, extending its lifespan and ensuring consistent operation.
The DILA-40 relay is designed for DIN-rail or screw mounting, offering flexibility in installation. It boasts a high mechanical lifespan of 20,000,000 operations and can handle an operating frequency of up to 9000 operations per hour. The relay is also rated for IP20 protection, ensuring it is safe from finger and back-of-hand contact.
Engineered to withstand harsh conditions, the DILA-40 relay operates within a wide ambient temperature range of -25°C to 60°C and can be stored in temperatures ranging from -40°C to 80°C. It is also resistant to shock and vibration, meeting IEC/EN 60068-2-27 standards.
With certifications from UL, CSA, and CE, the DILA-40 relay meets international standards for safety and performance. It is suitable for use in various industrial applications, including...
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
- Proveedor de confianza — Alemania, miembro desde 2025, 5–9 empleados
- Disponibilidad:
- 1 piezaEn stockActualizado en: 03-09-2026
- Garantía:
- 12 meses
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Eaton
- Product Name
- Eaton Moeller® series DILA Control relay
- Catalog Number
- 276344
- UL Category Control No.
- NKCR
- VDE
- 0660
- UL
- 508
- CSA Class No.
- 3211-03
