Keyence IL-1000

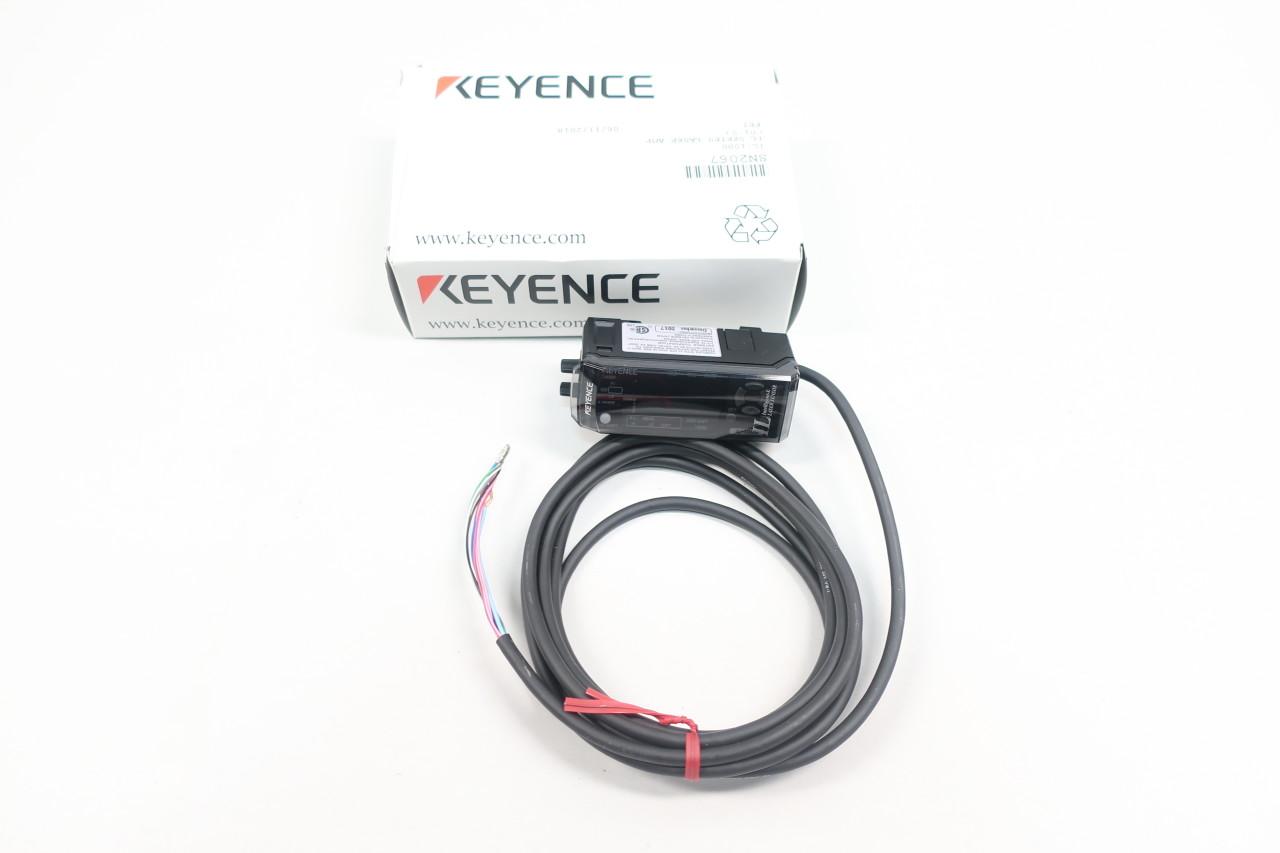

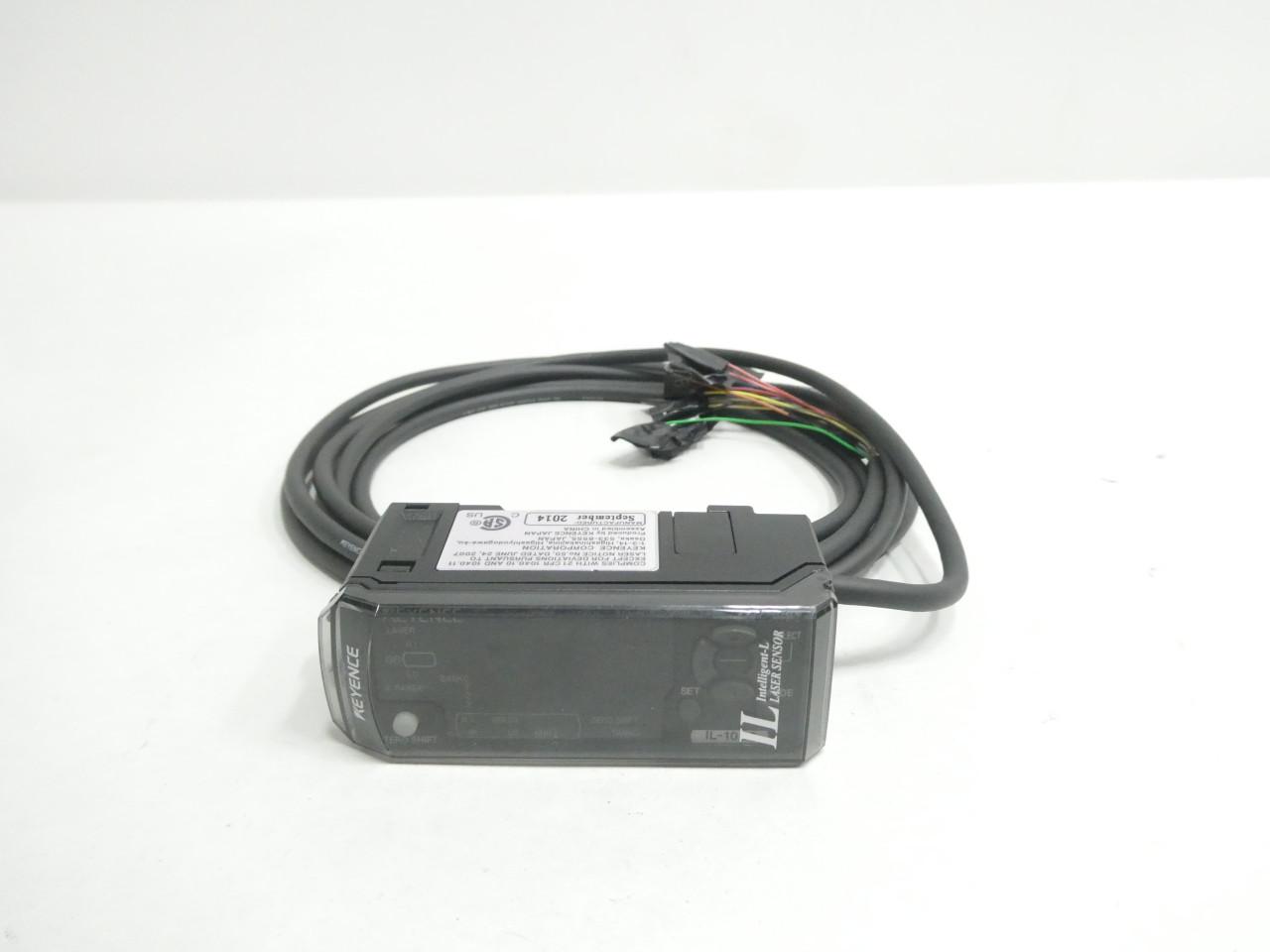

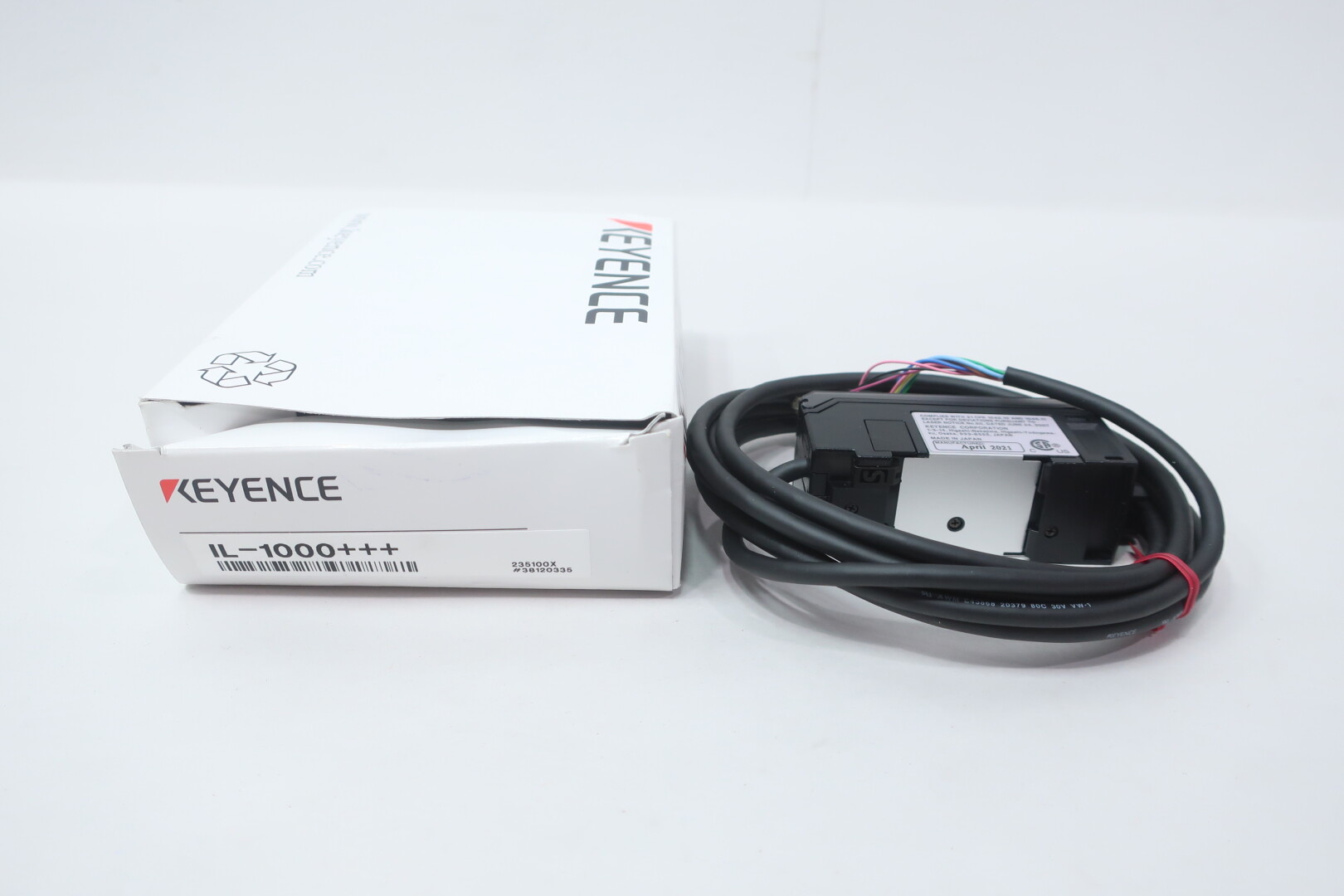

The Keyence IL-1000 Amplifier Unit is a versatile and high-precision device designed for DIN-rail mounting. It is the main unit in the IL Series CMOS Multi-Function Analogue Laser Sensor system, providing exceptional measurement accuracy and reliability. This amplifier unit is compatible with various sensor heads, offering a minimum displayable unit of 1 µm to 50 µm depending on the sensor model. The display range is adjustable, ensuring flexibility for different measurement requirements.

The IL-1000 features multiple analogue voltage and current output options, allowing integration with diverse control systems. It supports a range of control inputs and outputs, including bank switch, zero-shift, stop emission, timing, and reset inputs, as well as judgment and alarm outputs. The unit operates on a power voltage of 10 to 30 VDC and has a power consumption of 2300 mW or less.

Built to withstand harsh industrial environments, the IL-1000 has an ambient temperature range of -10 to +50 °C and relative humidity tolerance of 35 to 85% RH. It is resistant to vibrations and features a robust construction with a polycarbonate case and front sheet, polyacetel key tops, and PVC cables. The unit is lightweight, weighing approximately 150 g including attachments.

This amplifier unit is compliant with CE, CSA, and UL standards, ensuring high safety and quality. It is an ideal choice for applications requiring precise measurement and control in industrial automation, quality inspection, and...
