Mersen 270TPMOV7SL

Name: TPMOV 270V Short Leads Microswitch No Visual Tabs 75 kA 500 pk
Brand: Mersen
SKU: 270TPMOV7SL

TPMOV 270V Short Leads Microswitch No Visual Tabs 75 kA 500 pk

1 / 1

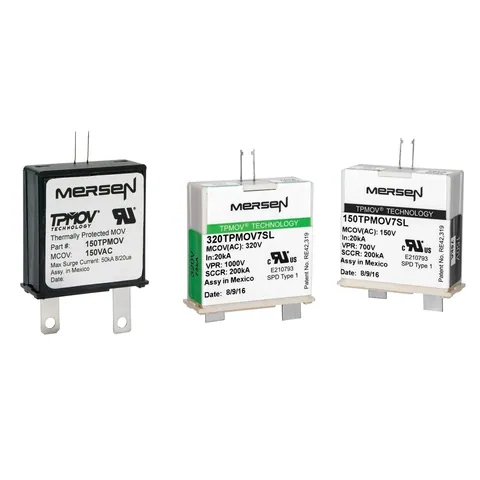

Imagen de catálogo del fabricante

Descripción del producto

The TPMOV 270V Short Leads Microswitch integrates Mersen’s advanced TPMOV technology, which addresses typical failure modes associated with standard metal oxide varistors. This device includes a voltage clamping mechanism and a disconnecting system that continuously monitors the metal oxide disk, ensuring fail-safe operation.

Upon experiencing overvoltage, the metal oxide disk is effectively isolated from the power system by an arc shield. Additionally, this unit features a visual pin indicator and a normally open micro-switch for remote monitoring capabilities.

The TPMOV7 variant offers a surge capacity that is 50% greater than previous models while maintaining the same footprint. It is rated for a peak surge current of 75 kA at 8/20μs, with maximum continuous operating voltages (MCOV) ranging from 150V to 320VAC. The device operates within a frequency range of 50/60 Hz, with an operating temperature range from -40 °C to 85 °C.

Consigue plazos de pago de hasta 90 días de 500+ proveedores.
Descuentos de reventa de hasta el 40%!

Registrate

Enviar solicitud de precio

Enviar consulta

Formas de pago:

Solicite un presupuesto y le enviaremos información sobre disponibilidad y precio.

Especificaciones

Marca: Mersen
Frequency Hz: 50/60 Hz
Max Operating Temp: 85 °C
Max Storage Temp: 85 °C
Min Operating Temp: -40 °C
Min Storage Temp: -40 °C
Short Circuit Current Rating Sccr: 200 kA

Acceda a nuestra plataforma para encontrar más ofertas

Regístrese ahora para explorar 36 millones de ofertas de proveedores verificados de todo el mundo.

Comparar ofertas globalmente
Contacto directo con el proveedor
Peticiones de oferta, presupuestos y pedidos
Búsqueda de listas de materiales

Registrate14 días de prueba gratuita

Documentos

Hoja de datos

Hoja de datos para Mersen 270TPMOV7SL, incluyendo especificaciones y características.

Descargar hoja de datos

TraceParts

Modelos CAD

Modelo CAD 3D y planos técnicos, listos para tu software de diseño.

Descargar modelo CAD
