Mersen
64033R
1 / 1
Descripción

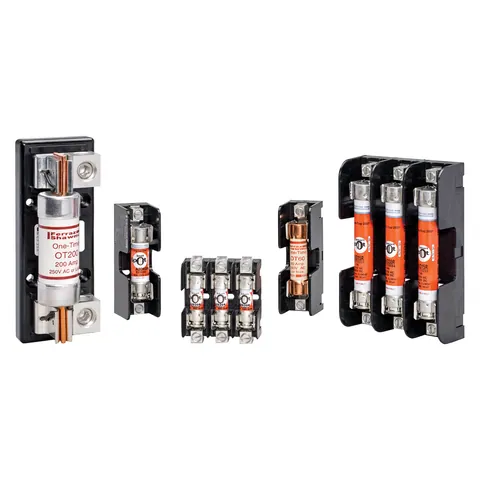

Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.- Country of Origin
- MX
- Part Number
- 64033R
- UPC
- 782001665074
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Specifications
- Frequency Hz
- 50/60 Hz
- Max Operating Temp
- 80 °C
- Max Storage Temp
- 80 °C
- Min Storage Temp
- -25 °C
- Short Circuit Current Rating Sccr
- 200 kA
- Ampere Rating
- 400 A
- Max Fuse Rating
- 400 A
- Rated Voltage Ac Ul
- 600 V
- Rated Voltage Dc Ul
- 600 V
- Torque Rating
- 275 lb-in
- Country Of Origin
- MX
- Product Line
- Class R 600V Fuseholders - Class R
- Body Insulating Material
- Phenolic
- Installation Mounting
- Direct Screw Mount
- Number Of Poles
- 3-pole
- Fuse Installation Method
- Clip-in
- Wire Connections
- Box In-Line Clip
