Neutrik
NE8FBV

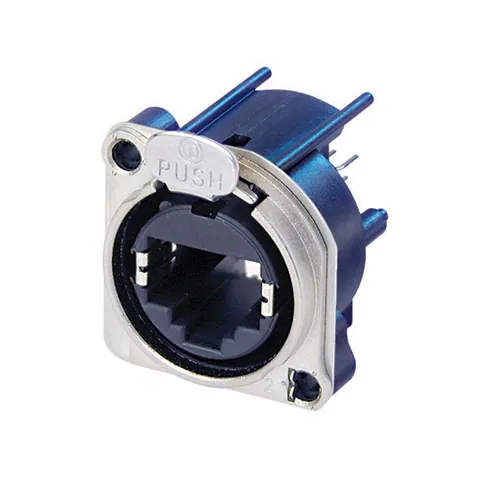

Vertical PCB mount RJ45 receptacle, B-Series cutout with latch lock, max, panel thickness 3 mm
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Un total de 120 Parts In-Stock de 2 Distributors
Condiciones del producto:
Additional Information
- Part Number
- NE8FBV
Specifications
- Flammability
- UL 94 V-0
- Solderability
- Complies with IEC 68-2-20
- Temperature range
- -30 °C to +80 °C
Product Information
- Product Family
- etherCON B Series
- Title
- NE8FBV
- Gender
- female
Electric Specifications
- Contact resistance
- < 10 mΩ
- Dielectric strength
- 1 kVdc
- Frequencyrange
- 1 - 100 MHz
- Insulation resistance
- > 0.5 GΩ
- Rated current per contact
- 1,5 A
- Rated voltage
- < 50 V
- Transmission performance
- Class D
- Standard compliance
- TIA/EIA 586B, IEC11801
Mechanic Specifications
- Insertion force
- ≤ 20 N
- Withdrawal force
- ≤ 20 N
- Lifetime
- > 1000 mating cycles
- Panel thickness
- max. 3 mm 0.12'
- Wiring
- vertical PCB mount
- Locking device
- Latch lock
- Mounting direction
- Rear mounting
- Chassis shape
- B
Material
- Contact plating
- 0.2 µm Au over Ni plating
- Contacts
- Bronze (CuSn8)
- Insert
- PBTP 15 % GR
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Nickel
