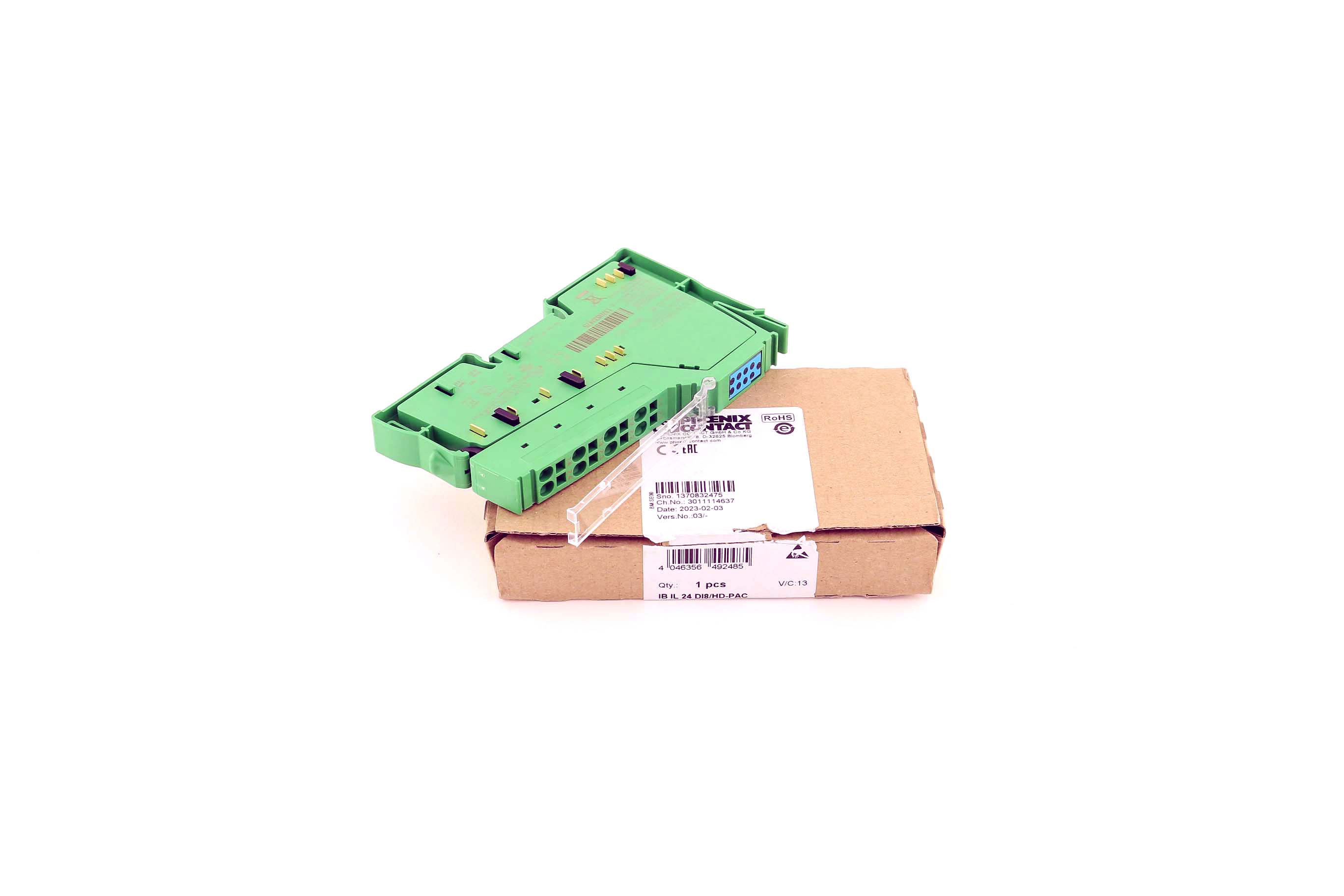

Phoenix Contact 2700173

The Inline digital input terminal IB IL 24 DI8/HD-PAC is designed for industrial applications, featuring 8 digital inputs operating at 24 V DC. It utilizes a 1-conductor connection technology, ensuring straightforward installation and integration.

With a transmission speed of 500 kbps in the local bus, this module efficiently handles process data in real time. The device is rated at IP20 for protection, suitable for typical industrial environments where exposure to dust and moisture is minimal.

Dimensions of the terminal are compact, measuring 12.2 mm in width, 119.8 mm in height, and 71.5 mm in depth, which facilitates easy placement in DIN rail setups. The operational temperature range spans from -25 °C to 55 °C, making it adaptable to various environmental conditions.

It supports a maximum current draw of 5.5 mA with a nominal input voltage of 24 V DC, while the input voltage range for a '0' signal is from -3 V DC to 5 V DC, and for a '1' signal it ranges from 11 V DC to 30 V DC. This ensures reliable signal detection and processing capabilities.

For added convenience, the terminal includes both an Inline connector and a labeling field, streamlining the connection and identification processes.
