Schneider Electric
8501CDO16V53
1 / 5
Descripción
Activo maduro

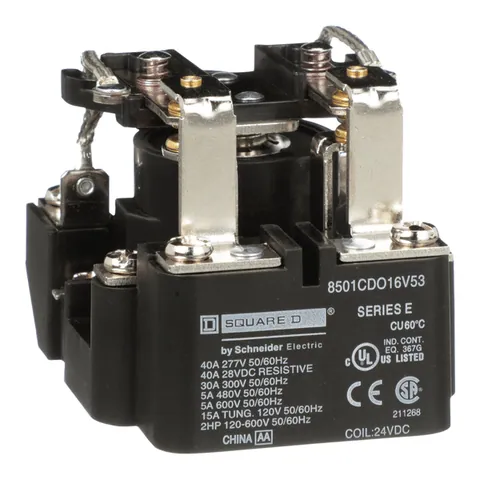

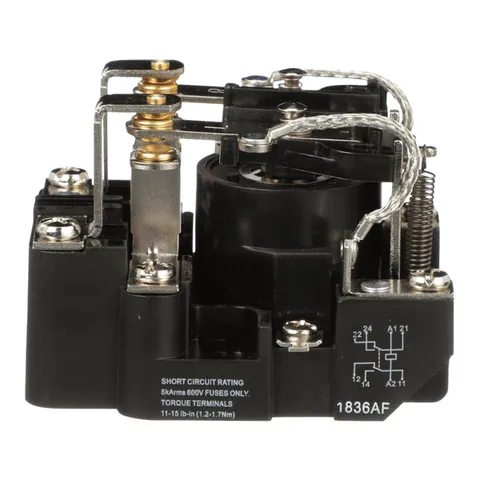

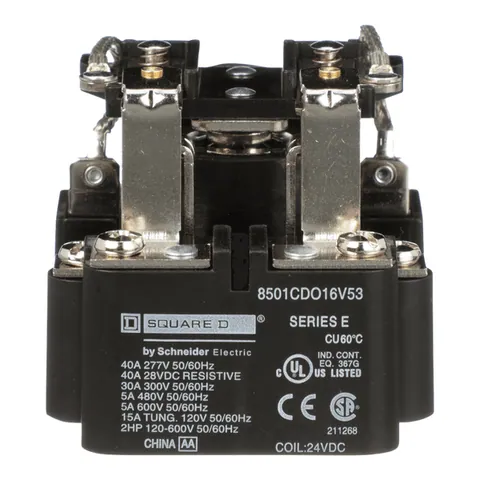

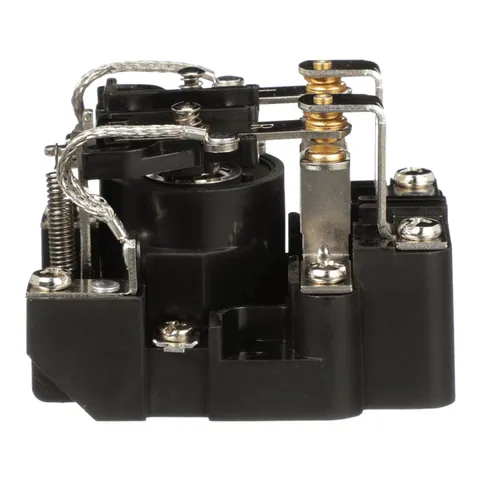

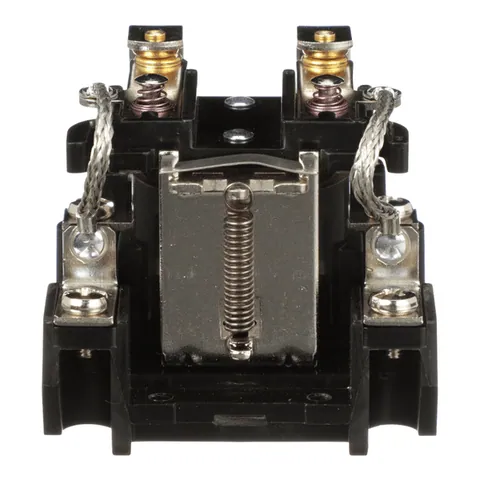

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 24 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.- Country of Origin
- CN
- Part Number
- 8501CDO16V53
- Tariff Code
- 8536490075
- EAN
- 39122324
- UPC
- 785901052197
- UNSPSC
- 39122324
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Environment
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA || CE
- Ambient Air Temperature For Operation
- -22-140 °F
- Height
- 3.12 in
- Width
- 2.5 in
- Depth
- 2.31 in
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Complementary
- Catalog Class
- 8501
- Connections - Terminals
- screw clamp terminal
- Mounting Support
- panel mounting
- Hold-In Power Consumption In W
- 2-2 W
- Awg Gauge
- AWG 10 copper
- Phase
- 1 phase
- Tightening Torque
- 11-15 lbf.in
Specifications
- Rated Power In Hp
- 2.0 hp
- [Uc] Control Circuit Voltage
- 24 V DC
- Contacts Type And Composition
- 2 NO/2 NC
- Range Of Product
- Power Relay 8501C
- Line Rated Current
- 30 A
- Switch Function
- DPDT
- Product Or Component Type
- power relay
- Device Application
- suited for controlling small single phase motors and other light loads
- Device Short Name
- type C
- Maximum Switching Voltage
- 600 V AC
