Schneider Electric
8501CO15V24
1 / 5
Descripción
Activo maduro

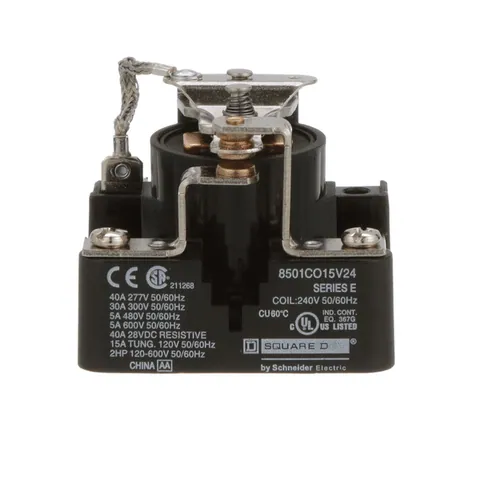

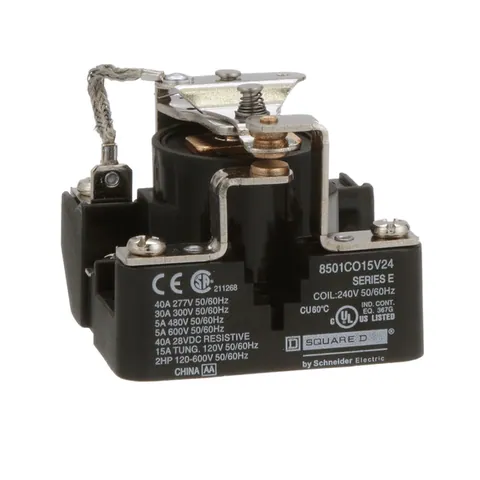

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 240 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.- Country of Origin
- CN
- Part Number
- 8501CO15V24
- Tariff Code
- 8536490075
- EAN
- 39122324
- UPC
- 785901052289
- UNSPSC
- 39122324
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Environment
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA || CE
- Ambient Air Temperature For Operation
- -22-122 °F
- Height
- 2.43 in
- Width
- 2.5 in
- Depth
- 2.18 in
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1705008EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Connections - Terminals
- screw clamp terminal
- Mounting Support
- panel mounting
- Hold-In Power Consumption In Va
- 10-10 VA
- Phase
- 1 phase
- Catalog Class
- 8501
- Awg Gauge
- AWG 10 copper
- Tightening Torque
- 11-15 lbf.in
Specifications
- [Uc] Control Circuit Voltage
- 240 V AC 50/60 Hz
- Range Of Product
- Power Relay 8501C
- Product Or Component Type
- power relay
- Maximum Switching Voltage
- 600 V AC
- Rated Power In Hp
- 2.0 hp
- Contacts Type And Composition
- 1 NO/1 NC
- Line Rated Current
- 30 A
- Switch Function
- SPDT
- Device Application
- suited for controlling small single phase motors and other light loads
- Device Short Name
- type C
