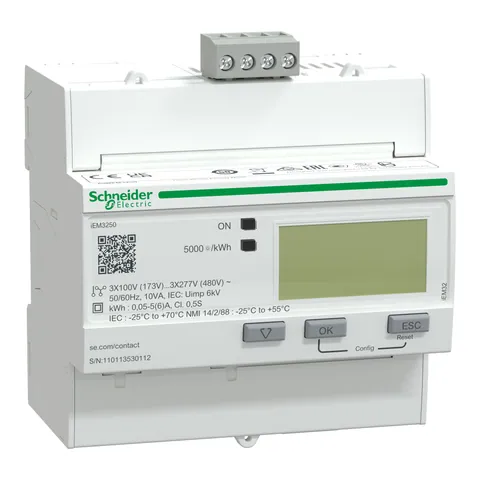

A9MEM3250

Environment

Height

95 mm

Ambient Air Temperature For Operation

-25-70 °C - IEC

Pollution Degree

2

9 Mm Pitches

10

Color

White

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

5-95 % 50-50 °C

Ip Degree Of Protection

front panel IP40 IEC 60529 || body IP20 IEC 60529

Width

90 mm

Depth

69 mm

Operating Altitude

< 6561.68 ft (2000 m)

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP111276EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI111261EN_V1

Eu Rohs Directive

Compliant with Exemptions

Complementary

Network Frequency

50 Hz || 60 Hz

Communication Port Support

screw terminal block RS485

Sampling Rate

32 samples/cycle

Number Of Outputs

0

Mounting Support

DIN rail

Maximum Value Measured

99999999 MWh

Standards

BS EN 61557-12:2021 || IEC 61557-12:2021 || EN 61557-12:2021 || BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 62052-11:2020 || IEC 62052-11:2020 || EN 62052-11:2020 || BS EN 62053-21 || IEC 62053-21 || EN 62053-21 || BS EN 62053-22:2020 || IEC 62053-22:2020 || EN 62052-22 || BS EN 62052-31:2015 || IEC 62052-31:2015 || EN 62052-31:2015 || BS EN 61010-1:2010 || EN 61010-1:2010 || IEC 61010-1:2010 || UL 61010-1:2010 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || ANSI C12.20

Type Of Measurement

active energy || current || voltage || active power

Communication Port Protocol

Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V

Product Certifications

CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || EAC sub-meter) || KZ NMI M 6-1 || KZ || NMI NMI M 6-1

Number Of Inputs

0

Measurement Current

1-32767000 mA

Connections - Terminals

current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm²

Mounting Mode

clip-on

Local Signalling

Green indicator light power ON || Yellow flashing LED accuracy checking || Yellow indicator light communications are active on the Modbus port (Modbus)

Technology Type

electronic

Poles Description

3P || 3P + N || 1P + N

Line Rated Current

5 A || 1 A

Analogue Input Type

external CT 1 A or 5 A

Display Type

LCD display

Overvoltage Category

III

Device Application

sub billing || partial meter

Accuracy Class

class 0.5S active energy IEC 62053-22 || class 0.5S active energy IEC 61557-12 || class C active energy EN 50470-3

Rated Voltage

100-277 V || 173-480 V

Specifications

Product Or Component Type

energy meter

Product Name

Acti9 iEM3000

Range

Acti9

Device Short Name

iEM3250
