Schneider Electric
ABE7CPA21
- Condición:
- Nuevo Precintado de Fábrica
- Disponible:
- 1 piezaEn stockActualizado en: 07-11-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
1
€74.67
netSchneider Electric
ABE7CPA21
1 / 1
Descripción
Activo maduro

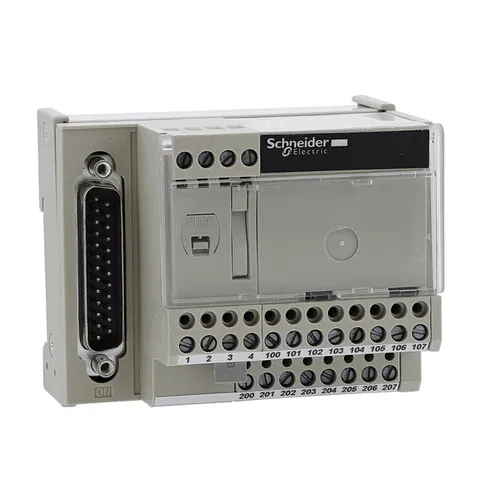

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This product consists in a connection sub-base for distribution of 4 analogue output channels. It is furnished with screw type terminals for electrical connection and 25-way D-Sub (DB-25) connection to PLC. It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon Premium TSXAEY420 and TSXASY410 PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.- Country of Origin
- LV
- Part Number
- ABE7CPA21
- Tariff Code
- 85369095
- EAN
- 3389110836196
- UNSPSC
- 32151603
£71.73
net1
Métodos de pago:
- Mejor oferta de:
Proveedor de confianza de Automa.Net- Disponibilidad:
- 1 piezaEn stockActualizado en: 07-11-2024
- Entrega Estimada:
- Bajo pedido
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
Un total de 78 Parts In-Stock de 18 Distributors
Proceso de Pago Seguro
Políticas de Devolución y Reembolso
Políticas de Envío
Políticas de Garantía
Ofertas Disponibles (24)
Schneider Electric
ABE7CPA21
- Condición:
- Nuevo Precintado de Fábrica
- Disponible:
- 1 piezaEn stockActualizado en: 07-11-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
1
€87.40
netSchneider Electric
ABE7CPA21
- Condición:
- Nuevo Precintado de Fábrica
- Disponible:
- 1 piezaEn stockActualizado en: 07-11-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
1
€100.80
netSchneider Electric
ABE7CPA21
- Condición:
- Nuevo Precintado de Fábrica
- Disponible:
- 1 piezaEn stockActualizado en: 07-11-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
1
€102.76
netSchneider Electric
ABE7CPA21
- Condición:
- Nuevo Precintado de Fábrica
- Disponible:
- 1 piezaEn stockActualizado en: 07-11-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
1
€111.20
netOferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
€41.19
Environment
- Product Certifications
- DNV || GL || CSA || UL || EAC
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Ambient Air Temperature For Operation
- 0-60 °C IEC 61131-2
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Pollution Degree
- 2 IEC 60664-1
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Protective Treatment
- TC
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1212029EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Installation Category
- II IEC 60664-1
- Net Weight
- 0.18 kg
- Fixing Mode
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Product Compatibility
- Premium TSXAEY420 || Premium TSXASY410
- Connection To Plc
- SUB-D 25
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
- Function Of Module
- analogue output current Premium || analogue output voltage Premium
Specifications
- Range Of Product
- Modicon ABE7
- Product Or Component Type
- connection sub-base for counter and analogue channels
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
- Number Of Channels
- 4
