Schneider Electric
B2.40
- Condición:
- Nuevos excedentes
- Disponible:
- 12 piezasEn stockActualizado en: 12-11-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
- Garantía:
- 12 meses
1
$36.67
netSchneider Electric
B2.40
1 / 5
Descripción
Activo maduro

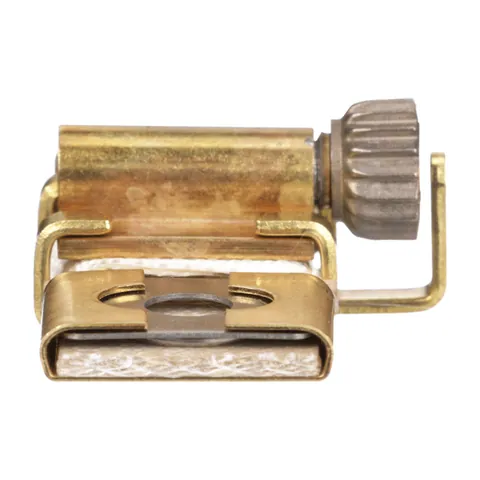

Thermal units are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over-currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses or circuit breakers. Class 20 thermal units respond to overload current conditions according to trip curves. These thermal units will trip in 20 seconds or less on overload conditions. These thermal units have a one piece construction. The motor current passes through a small heater winding within these thermal units. Under overload conditions, the heat causes a special solder to melt allowing a ratchet wheel to spin free thus opening the control circuit contacts and opening the motor contacts. AIC Rating in accordance with UL512 is 10,000 Amp. This fuse holder is UL listed and CSA certified.- Country of Origin
- MX
- Part Number
- B2.40
- Tariff Code
- 8538904000
- EAN
- 39122330
- UPC
- 785901587347
- UNSPSC
- 39122330
Métodos de pago:
- Mejor oferta de:
- Proveedor de confianza de Automa.Net
- Disponibilidad:
- 4 piezasEn stockActualizado en: 11-11-2024
- Garantía:
- 24 meses
- Entrega Estimada:
- Bajo pedido
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
Un total de 16 Parts In-Stock de 2 Distributors
Proceso de Pago Seguro
Políticas de Devolución y Reembolso
Políticas de Envío
Políticas de Garantía
Ofertas Disponibles (1)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Pvc Free
- Yes
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
- Thermal Overload Type
- melting alloy
- Range Of Product
- B
- Motor Tripping Class
- 20
Documentos
Data Sheet
DescargarProductos relacionados
