Schneider Electric
BGL36000S12

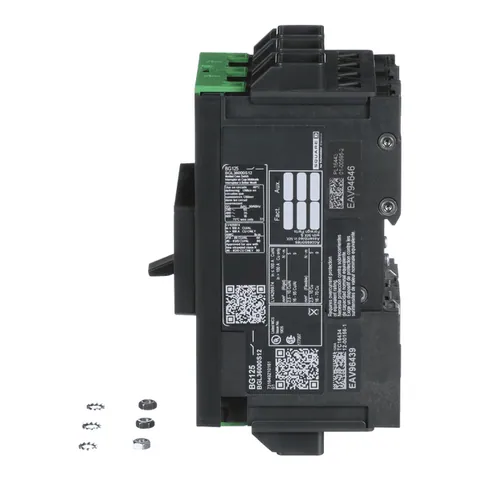

Automatic switch, PowerPacT B, 125A, 3 pole, 600VAC, 18kA, EverLink lug, magnetic
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Additional Information
- Part Number
- BGL36000S12
- UNSPSC
- 39121601
- Tariff Code
- 8536200020
- Country of Origin
- MX
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- UL 489
- Product Certifications
- UL
- Ambient Air Temperature For Storage
- -50-85 °C
- Quality Labels
- CE
- Operating Altitude
- 6561.68 ft (2000 m) without derating || 5000 m with derating
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1610005EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Complementary
- Mounting Mode
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
- Height
- 137 mm
- Connection Pitch
- 27 mm
- Contact Position Indicator
- yes
- [Ue] Rated Operational Voltage
- 600Y/347 V AC 50/60 Hz UL 489
- Tightening Torque
- 5-5 N.m 2.5-10 mm² || 9-9 N.m 16-95 mm²
- Breaking Capacity Code
- G
- 9 Mm Pitches
- 9
- Magnetic Tripping Current
- 1320-1320 A
- Number Of Slots
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Electrical Connection
- Everlink lug, line || Everlink lug, load
- Magnetic Hold Current
- 880 A
- Control Type
- toggle
- Wire Stripping Length
- 20 mm
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Short-Circuit Withstand
- 65 kA 208Y/120 V UL 489 || 65 kA 240 V UL 489 || 35 kA 480Y/277 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Local Signalling
- for presence of auxiliary contacts flag (green)
- Poles Description
- 3P
- Quantity Per Set
- set of 1
- Line Rated Current
- 125 A
- Awg Gauge
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Color
- Gray RAL 7016)
- Width
- 81 mm
- Depth
- 89 mm
Specifications
- Product Or Component Type
- automatic switch
- Product Name
- PowerPact B
- Range
- PowerPact
- Device Application
- distribution
