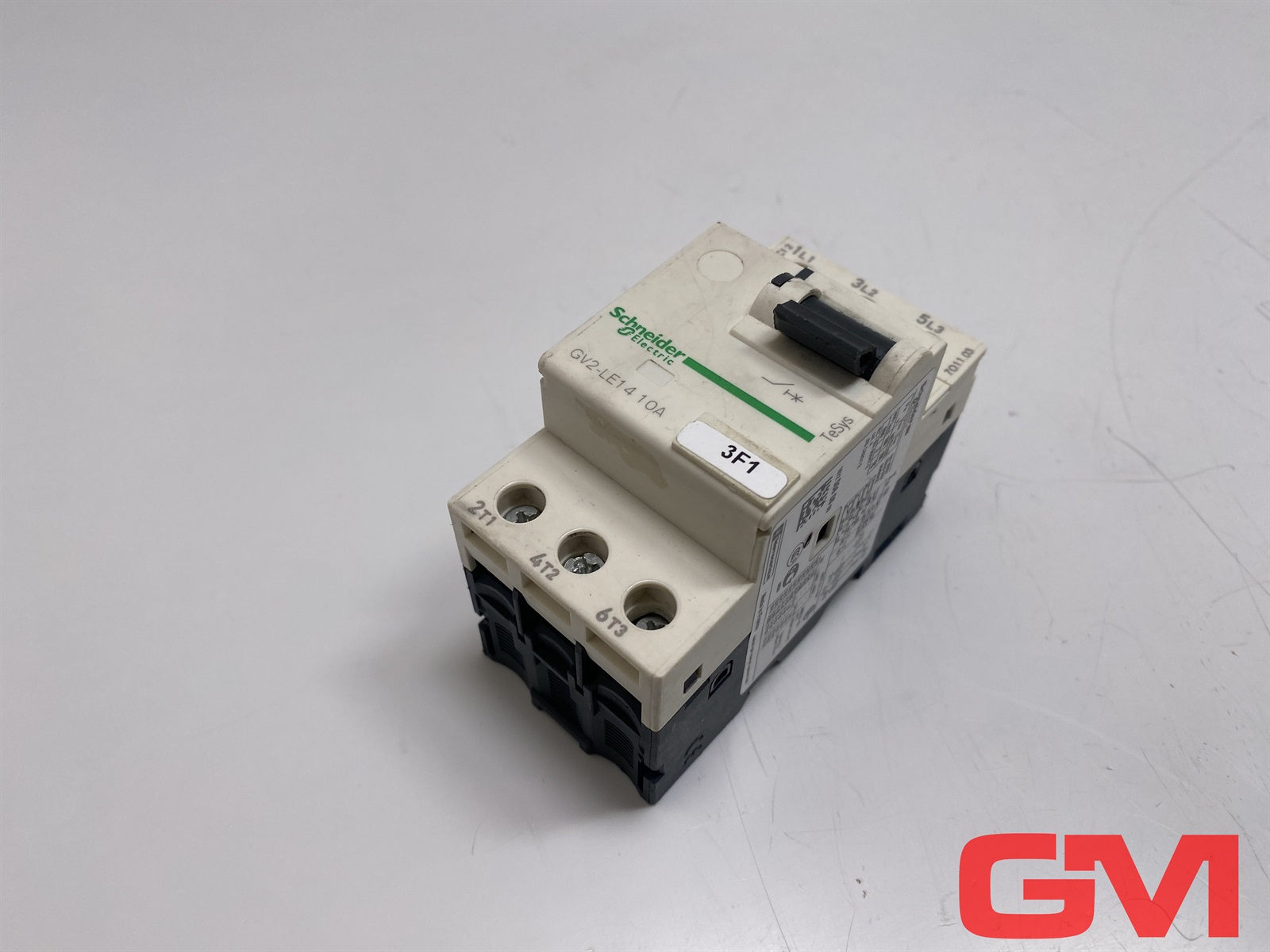

Schneider Electric GV2LE14
TeSys GV2 Manual Starter and Protector, magnetic circuit protector, toggle switch, 10 A, screw clamp terminals
1 / 1
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The Schneider Electric TeSys GV2 Manual Starter and Protector is an advanced solution designed for motor applications up to 3-4kW at 400V. This manual starter provides magnetic protection with a tripping level of 13xIn, ensuring high breaking capacity of Icu 100kA@400V. The connection is facilitated by screw clamp terminals for ease and reliability.
The toggle switch guarantees start-stop control for up to 100,000 cycles in an AC environment. To complete the motor protection, it is recommended to use this product in conjunction with a thermal overload relay (LRD14), which can be purchased separately.
This manual starter and protector is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine) and complies with Green Premium standards (RoHS/REACh).
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
- Proveedor de confianza — Reino Unido, miembro desde 2021
- Disponibilidad:
- 10 piezasEn stockActualizado en: 31-10-2025
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA || IECEE CB Scheme
- Ik Degree Of Protection
- IK04
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Ambient Air Temperature For Operation
- -20-60 °C
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Climatic Withstand
- IACS E10
