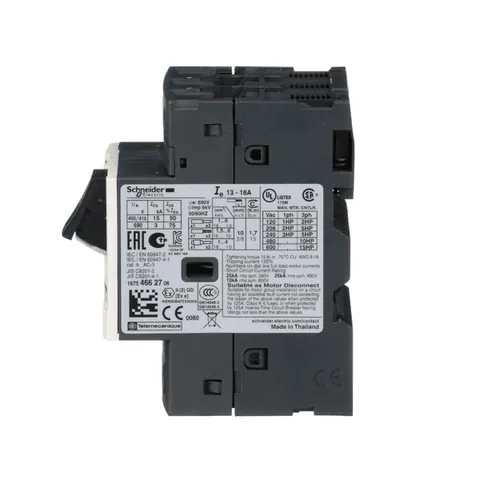

GV2ME20

Environment

Product Certifications

CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA

Ik Degree Of Protection

IK04

Mechanical Robustness

shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz

Ambient Air Temperature For Operation

-20-60 °C

Standards

EN/IEC 60947-2 || EN/IEC 60947-4-1

Climatic Withstand

IACS E10

Ambient Air Temperature For Storage

-40-80 °C

Ip Degree Of Protection

IP20 IEC 60529

Operating Altitude

6561.68 ft (2000 m)

Fire Resistance

960 °C IEC 60695-2-11

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP121004

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI121004

Eu Rohs Directive

Compliant with Exemptions

Complementary

Line Rated Current

18 A

[Ue] Rated Operational Voltage

690 V AC 50/60 Hz IEC 60947-2

Height

89 mm

Phase Failure Sensitivity

yes IEC 60947-4-1

Rated Duty

continuous IEC 60947-4-1

Network Type

AC

Magnetic Tripping Current

223-223 A

[Ith] Conventional Free Air Thermal Current

18 A IEC 60947-4-1

Motor Power Kw

7.5-7.5 kW 400/415 V AC 50/60 Hz || 9-9 kW 500 V AC 50/60 Hz || 15-15 kW 690 V AC 50/60 Hz

Utilisation Category

category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1

Net Weight

0.26 kg

Fixing Mode

35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947-2

[Ics] Rated Service Short-Circuit Breaking Capacity

100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Control Type

push-button

Power Dissipation Per Pole

2.5 W

Electrical Durability

100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In

[Ui] Rated Insulation Voltage

690 V AC 50/60 Hz IEC 60947-2

Breaking Capacity

100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Suitability For Isolation

yes IEC 60947-1 § 7-1-6

Thermal Protection Adjustment Range

13-18 A IEC 60947-4-1

Tightening Torque

1.7 N.m screw clamp terminal

Mechanical Durability

100000 cycles

Poles Description

3P

Color

dark grey

Width

45 mm

Depth

78.5 mm

Network Frequency

50/60 Hz IEC 60947-4-1

Specifications

Product Or Component Type

motor circuit breaker

Product Name

TeSys GV2 || TeSys Deca

Range

TeSys Deca

Device Application

motor protection

Device Short Name

GV2ME

Trip Unit Technology

thermal-magnetic

Modelos CAD

traceparts
