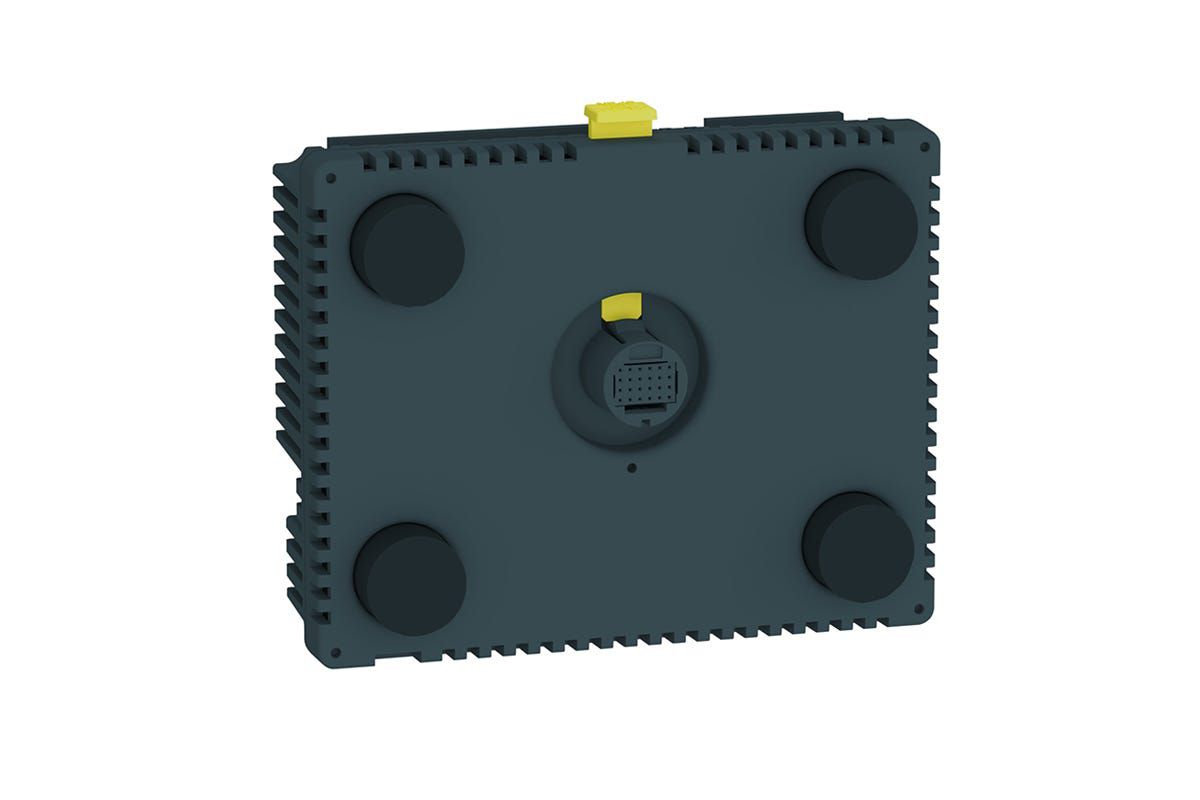

Schneider Electric HMISAC

The Harmony SCU rear module controller features 16 digital inputs and 10 outputs, operating at a supply voltage of 24V DC. It utilizes a CPU RISC processor with a frequency of 333 MHz and includes 128MB flash NAND, 128kB FRAM for internal data storage, and 128MB application run DRAM. Connectivity options include one serial link, one Ethernet TCP/IP via RJ45, one USB 2.0 type mini B, one USB 2.0 type A, and a DE-09 D-sub for CANopen master bus.

This model has an IP20 rating for the rear panel and IP65 for the front panel, compliant with IEC 60529, along with a NEMA 4X rating. The enclosure is constructed from PC/PBT, ensuring durability. With dimensions of 128mm width, 102mm depth, and 50.65mm height, it weighs 0.359kg.

It meets several standards including ANSI/ISA 12-12-01, UL 508, IEC 61000-6-2, and CSA C22.2 No 213 Class I Division 2. The device can be mounted on a panel thickness ranging from 1mm to 6mm. The integrated design of the Harmony SCU enhances functionality while simplifying installation and is compatible with EcoStruxure Machine Expert software. The product is certified by GOST, C-Tick, KCC, and cULus.
