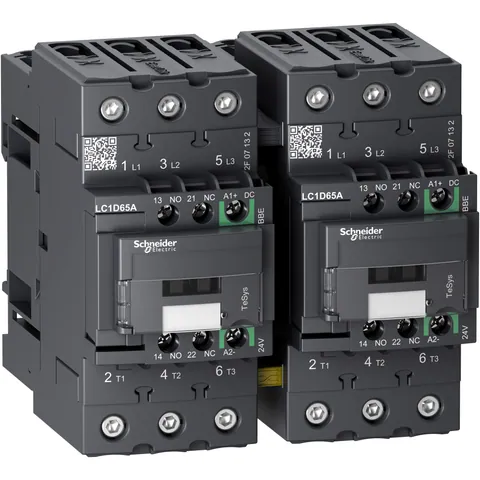

Schneider Electric LC2D65ABBE

The reversing contactor is designed for motor control applications and is rated for 65A AC-3 at 440V, supporting up to 30kW at 400V. It features a 24V DC low consumption electronic coil suitable for direct PLC control.

This device includes two normally open (NO) and two normally closed (NC) auxiliary contacts, with NC contacts designed to be mirror certified, ensuring compliance with safety systems. The mechanical interlock enhances operational reliability, while the pre-wired reversing circuit simplifies installation.

With a compact width of 119mm, this contactor can be mounted on DIN rails or panels. The design ensures a clear separation between power and control circuits, providing easy access for connections. It has been tested for high electrical durability, achieving 1.6 million cycles at rated conditions.

Constructed to withstand harsh conditions, it operates within an ambient temperature range of -40°C to 60°C, with derating applicable at higher temperatures. The device is certified to multiple standards including IEC, UL, CSA, and others, and maintains compliance with Green Premium standards, adhering to RoHS and REACH regulations.
