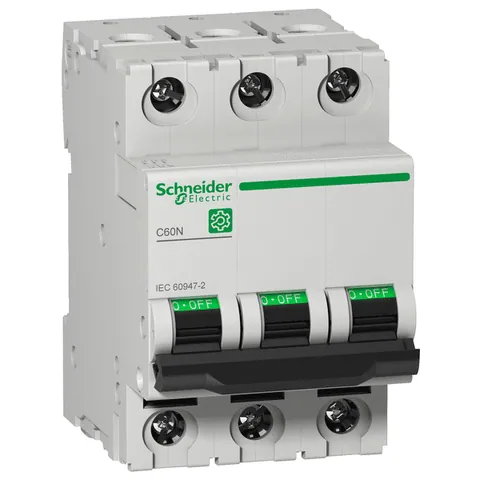

Schneider Electric M9F11316
Miniature circuit breaker (MCB), Multi9 C60N, 3P, 16A, C curve, 10kA (IEC/EN 60947-2)
1 / 2
Imagen de catálogo del fabricante
Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
Schneider Electric's Multi9 C60N is a low voltage miniature circuit breaker (MCB) designed for original equipment manufacturers (OEM) and control panel builders. It features a 3P design with 3 protected poles, a rated current of 16A, and a C tripping curve. The product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.
The Multi9 C60N offers enhanced protection against electrical threats, short circuits, earth leakage, and overloads. Its fast closing mechanism, overvoltage resistance, and high performance limitation improve its service life. The product has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
The Multi9 C60N can be clipped on a DIN rail with a width of 6 pitches of 9mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals, a Ue operational voltage of 240VAC, a Ui rated insulation voltage of 500VAC, and a Uimp rated impulse withstand voltage of 6kV. The operating frequency is 50Hz or 60Hz.
The Multi9 C60N has an overvoltage category of IV, a pollution degree of 3, and a colour of light grey (RAL7035). Its dimensions are (W) 54mm x (H) 81mm x (D) 72mm with a weight of 0.36kg.
The product operates at temperatures ranging from -30°C to 70°C and can be stored at temperatures ranging from -40°C to 80°C.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Rumanía, miembro desde 2023, 1–4 empleados- Disponibilidad:
- 1 piezaBajo pedidoActualizado en: 22-08-2026
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Line Rated Current
- 16 A 50 °C EN/IEC 60947-2
- Curve Code
- C
- Number Of Protected Poles
- 3
- Network Type
- DC || AC
- Standards
- EN/IEC 60947-2
- Product Certifications
- EAC || KC || CCC
