Schneider Electric M9F22416

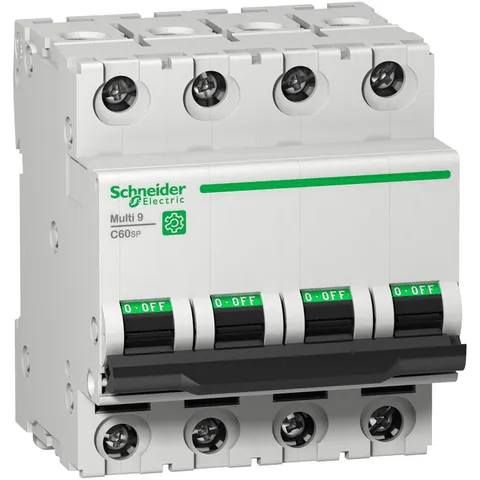

The Multi9 C60SP serves as a low voltage miniature circuit breaker (MCB) designed for effective electrical protection. This model is configured with four protected poles and has a rated current of 16A with a C tripping curve. It offers a rated short circuit breaking capacity of 10kA at 415VAC, complying with the EN/IEC 60947-2 standard.

This circuit breaker is suitable for both industrial and residential applications, conforming to the EN/IEC 60898-1 standard. It effectively safeguards against short circuits, overloads, and earth leakage, making it a crucial component for original equipment manufacturers (OEM) and control panel builders. Its electrical endurance is rated for up to 10,000 cycles, while mechanical endurance reaches 20,000 cycles.

The operational voltage is specified at 240VAC, with a rated insulation voltage of 500VAC and a rated impulse withstand voltage of 6kV. The device can be easily mounted on a DIN rail, with a compact width of 72mm, height of 81mm, and depth of 72mm. It is designed for operation within a temperature range of -30°C to 70°C and can be stored at temperatures between -40°C and 80°C. The product also features an IP20 protection degree on its terminals, as per IEC/EN 60529, thereby ensuring adequate safety against environmental factors.
