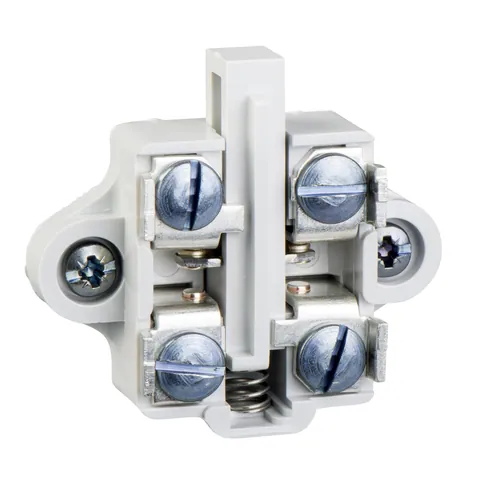

ZC1AZ11

Additional Information

Part Number

ZC1AZ11

UNSPSC

39121522

Tariff Code

8538908180

Country of Origin

FR

Specifications

Electrical Connection

screw-clamp terminals 1 x 0.5...2 x 2.5 mm²

Series Name

special format

Contacts Type And Composition

1 C/O

Range Of Product

OsiSense XC

Positive Opening

without

Contact Operation

slow-break

Contacts Material

silver plated contacts

Product Or Component Type

limit switch contact block

Product Compatibility

XC1AC11.

Device Short Name

ZC1A

Number Of Poles

1

Contractual warranty

Warranty

18 months

Complementary

[Ui] Rated Insulation Voltage

500 V ACIEC 60947-5-1 || 500 V ACNF C 20-040 || 600 V DCIEC 60947-5-1 || 600 V DCNF C 20-040 || 600 V ACCSA C22.2 No 14 || 600 V DCCSA C22.2 No 14

Electrical Durability

1000000 cycles, AC-15 110 V, 900 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 3000000 cycles, DC-13 110 V, 40 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 3000000 cycles, DC-13 230 V, 33 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 3000000 cycles, DC-13 48 V, 35 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15 230 V, 1900 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15 48 V, 450 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 110 V, 100 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V, 95 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 48 V, 100 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 3000000 cycles, AC-15 110 V, 350 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 3000000 cycles, AC-15 230 V, 430 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 3000000 cycles, AC-15 48 V, 170 VA 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

Short-Circuit Protection

10 A cartridge fuse gG

Minimum Actuation Speed

6 m/min

Contacts Insulation Form

Za

[Ithe] Conventional Enclosed Thermal Current

10 A

Maximum Resistance Across Terminals

8 mOhm IEC 60255-7 category 3

Offer Sustainability

Eu Rohs Directive

Not applicable, out of EU RoHS legal scope

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
