3RT1065-6AP36

power contactor, AC-3 265 A, 132 kW / 400 V AC (50-60 Hz) / DC operation 220-240...

3RT1065-6AP36

3RT1065-6AP36

Descripción

ActivoCumple con RoHS

Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 220 - 240 AC/DC Coil Frame Size S10,265A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3

Country of Origin: DE
Part Number: 3RT1065-6AP36
Tariff Code: 85364900
EAN: 4011209507937

€666.00

net

€740.00

Envío gratis!

1

Métodos de pago:

Mejor oferta de:: Proveedor de confianza de Automa.Net
Disponibilidad:: 2 piezas
En stock
Garantía:: 24 meses
Entrega Estimada:: 29-29 octubre a Reino Unido
Condición:: Reacondicionado

Reacondicionado - Reacondicionado. el artículo ha sido inspeccionado, limpiado y reparado para que funcione perfectamente y está en excelentes condiciones.

Un total de 299 Parts In-Stock de 48 Distributors

Entrega desde:: CZ

Shipping Information

Ofertas Disponibles (1)

Ofertas en stock

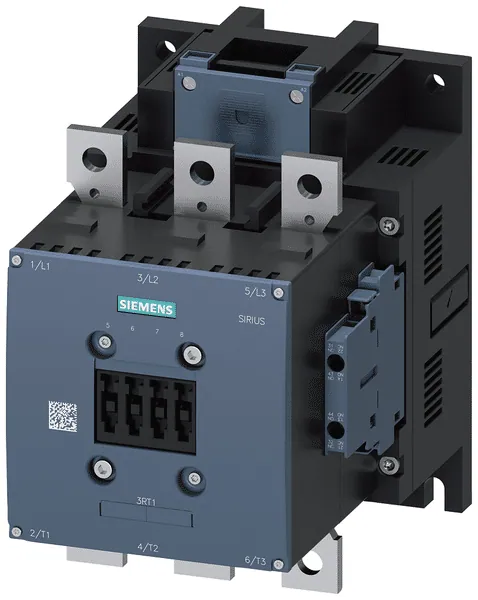

3RT1065-6AP36 product image

Siemens

3RT1065-6AP36

Condición:: Nuevos excedentes
Disponible:: 1 pieza
En stock

Oferta de:: Proveedor de confianza de Automa.Net
Entrega Estimada:: 22-23 octubre a Reino Unido
Garantía:: 24 meses

1

€899.00

€809.10

net

Envío gratis!

Oferta con plazo de entrega del fabricante

Entrega:Bajo pedido

El mejor precio:

€370.88

Additional Information

Part Number: 3RT1065-6AP36
UPC: 754554772493
Tariff Code: 85364900
Country of Origin: DE

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Power contactor, AC switching

Class Code : EC000066

Version : 7

Specifications

Modular version: true
Country of Origin: DE
Voltage type for actuating: AC/DC
Rated operation power NEMA: 147.09975 kW
Rated control supply voltage Us at DC: 220 V
Rated operation power at AC-3, 400 V: 132 kW
Rated operation power at AC-4, 400 V: 132 kW
Rated operation current Ie at AC-1, 400 V: 330 A
Rated operation current Ie at AC-3, 400 V: 265 A
Rated operation current Ie at AC-4, 400 V: 230 A
Rated control supply voltage Us at AC 50HZ: 220 V
Rated control supply voltage Us at AC 60HZ: 220 V
Number of main contacts as normally open contact: 3
Number of auxiliary contacts as normally open contact: 2
Number of auxiliary contacts as normally closed contact: 2
Type of electrical connection of main circuit: Rail connection
