Sta-Kon 14RBC-6

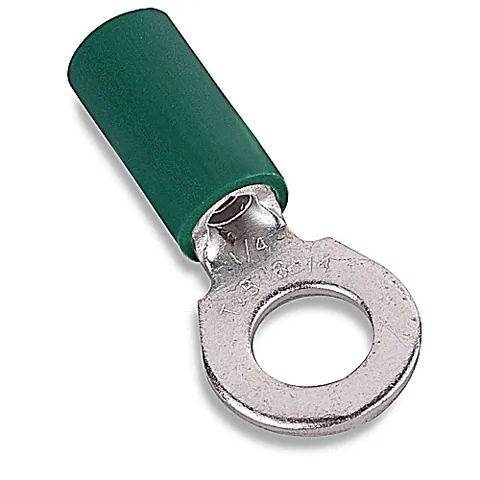

This Heavy-Duty Vinyl Insulated Ring Terminal is designed for robust electrical connections, accommodating wire sizes ranging from #16 to #14 AWG. With a maximum insulation diameter of .210 inches, this terminal ensures secure and reliable connections under various conditions.

The terminal is constructed from copper and finished with electro tin plating, providing excellent conductivity and corrosion resistance. It is rated for a maximum temperature of 105°C and a voltage of 600V, with a flammability rating of UL 94 V-0, ensuring safety and performance in demanding applications.

Measuring 1.06 inches in length and .25 inches in width, the terminal’s design includes a stud size of #6, making it compatible with various mounting configurations. This product is part of the RBC series, known for its reliable performance in industrial settings. Application tools such as WT2000 and ERG4001 are recommended, with the WT2130A suggested as the preferred tool for installation.

Each terminal is packaged with a weight of 12.5 lbs. per 1000 units, available in an inner package of 50 and an outer package of 250. Compliance with RoHS standards ensures that this terminal meets environmental safety regulations.
