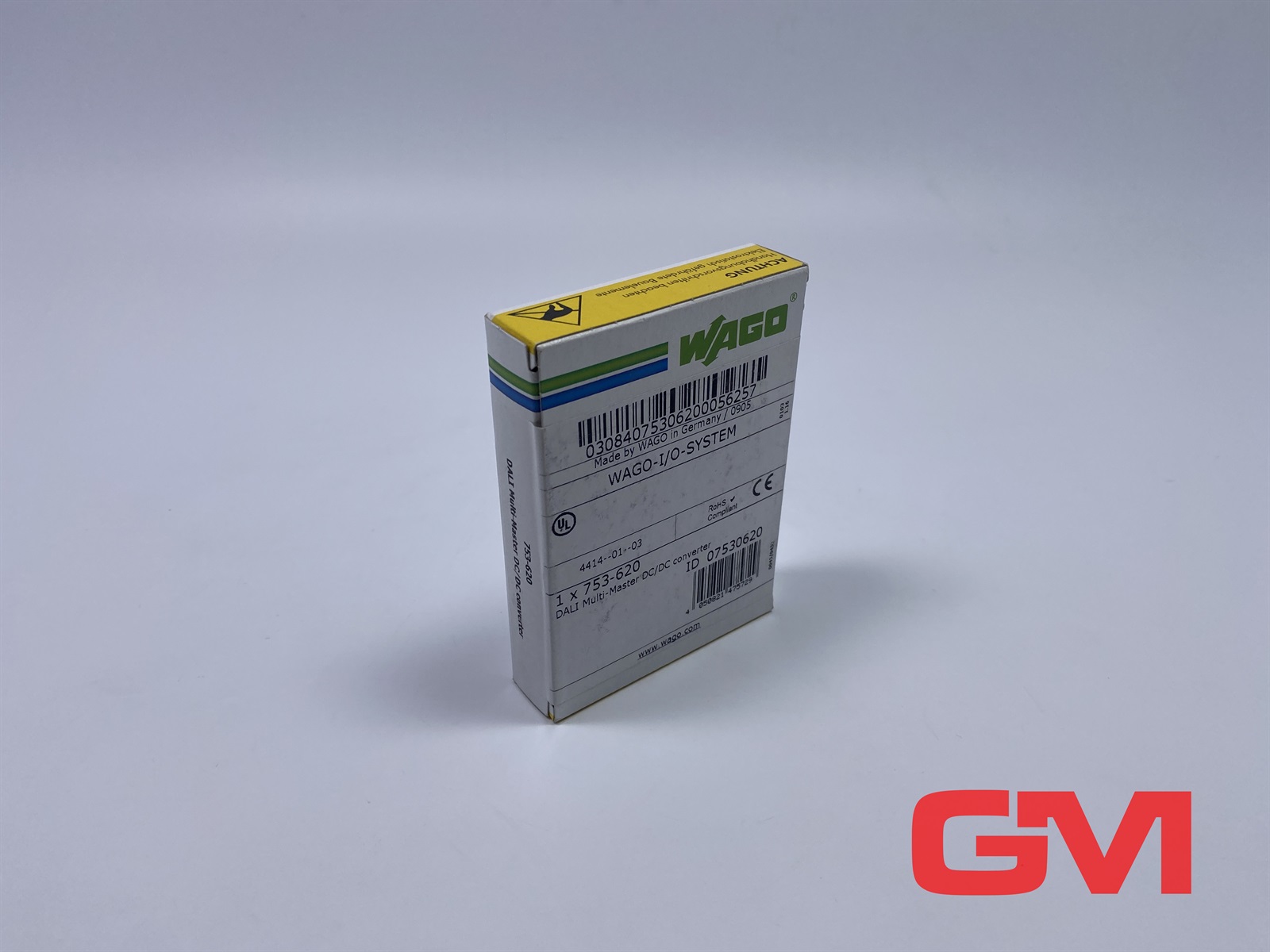

Wago
753-620
DALI Multi-Master DC/DC Converter
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
€100.30
1
Formas de pago:
Un total de 58 Parts In-Stock de 12 Distributors
Condiciones del producto:
Additional Information
- Part Number
- 753-620
- UPC
- 4050821475729
- Tariff Code
- 85389091890
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Protection type
- IP20
- Pollution degree
- 2 per IEC 61131-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Mounting position
- Horizontal (standing/lying); vertical
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- 4g per IEC 60068-2-6
- Shock resistance
- 15g per IEC 60068-2-27
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
Connection Data
- Connection type 1
- Field supply
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Physical Data
- Width
- 12 mm / 0.472 inches
- Height
- 100 mm / 3.937 inches
- Depth
- 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail
- 62.6 mm / 2.465 inches
Material Data
- Housing material
- Polycarbonate; polyamide 6.6
- Fire load
- 1.028 MJ
- Weight
- 55.071 g
Technical Data
- Signal type
- Voltage
- Signal type (voltage)
- 18 VDC
- Output current (module)
- 0.2 A
- Output current
- Short-circuit-protected
- Output voltage
- 18 VDC (at +V and -V)
- Supply voltage (system)
- 5 VDC; via data contacts
- Total current (system supply)
- 200 mA
- Supply voltage (field)
- 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Supply voltage (DALI): 18 VDC; at +U and -U via CAGE CLAMP® connection
- Short-circuit-protected
- Permanent
- Test voltage (input/output)
- 1.5 kV
- Number of incoming power jumper contacts
- 2
- Number of outgoing power jumper contacts
- 2
- Current carrying capacity (power jumper contacts)
- 10 A
Mechanical Data
- Mounting type
- DIN-35 rail
- Pluggable connector
- Pluggable
Specifications
- Product Group Code
- 0015
Commercial Data
- Packaging type
- Box
- Country of origin
- DE
- GTIN
- 4050821475729
- Customs tariff number
- 85044083900
Notes
- Note
- The 753 Series Plug is included with delivery.
