Wago

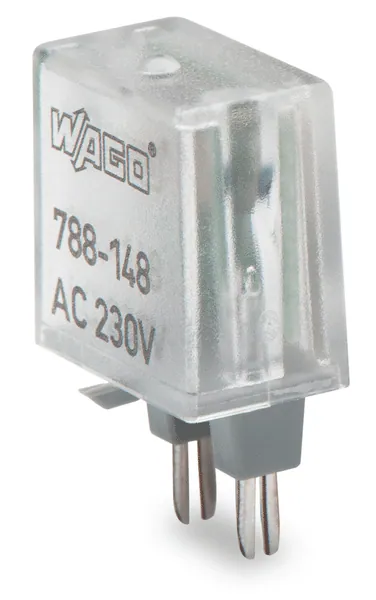

788-148
Filter module; RC filter element; Nominal voltage: 230 VAC
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
Enviar solicitud de precio
1
Formas de pago:
Un total de 51 Parts In-Stock de 9 Distributors
Condiciones del producto:
Additional Information
- Part Number
- 788-148
- UPC
- 4050821583547
- Tariff Code
- 85366990990
- ETIM
- Group Code : EG000019
- Group Description : Relays
- Class Description : Accessories for switching relay
- Class Code : EC002586
- Version : 7
Environmental Requirements
- Ambient temperature (operation at UN)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +70 °C
Module Characteristics
- Resistance
- 470 Ω
- Capacitance
- 100 nF
Physical Data
- Width
- 15 mm / 0.591 inches
- Height from the surface
- 15.7 mm / 0.618 inches
- Depth
- 10 mm / 0.394 inches
Material Data
- Fire load
- 0.027 MJ
- Weight
- 1.523 g
Standards And Specifications
- Standards/specifications
- EN 60664-1
Operating Data
- Nominal operating voltage
- AC 230 V
- Operating voltage
- 0 … 230 VAC
- Current consumption at UN
- 7.2 mA (230 VAC; 50 Hz); 3.6 mA (115 VAC; 50 Hz)
- Nominal mains frequency range
- 50 … 60 Hz
Mechanical Data
- Mounting type
- Pluggable module
Specifications
- Product Group Code
- 0006
Commercial Data
- Packaging type
- Box
- Country of origin
- DE
- GTIN
- 4050821583547
- Customs tariff number
- 85366990990
Notes
- Note
- To guarantee safe operation, residual voltages (due to the cable capacitance of long connection lines or leakage currents of semi-conductor switches and their protective circuits) must be lower than the release voltage of the relays.For DC relays, the release voltage is specified with ≤ 5% of the nominal voltage; for AC relays, it is 15% of the nominal voltage (per VDE 0435).The relay may not reset if a high residual voltage exists. Depending on the reason for the residual voltage, changing the cable routing or a parallel connection of an RC element could remedy this situation.
