Weidmuller 1775592001

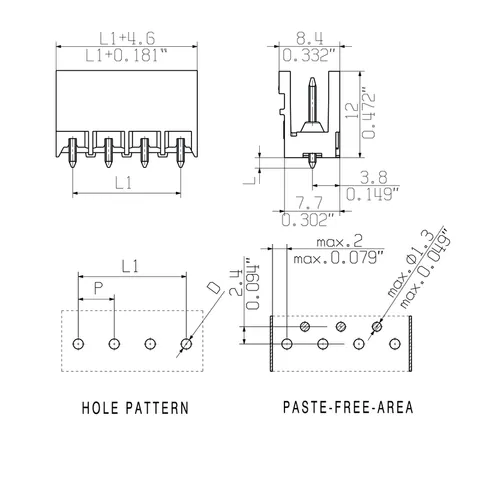

The PCB plug-in connector is designed for reliable board connectivity with a pitch of 5.08 mm and an outgoing elbow angle of 180°. It accommodates four poles with solder pin lengths of 1.5 mm, making it suitable for various electronic applications.

Constructed from LCP GF insulating material, this connector exhibits a moisture sensitivity level of 1 and a high Comparative Tracking Index (CTI) of ≥ 175, ensuring enhanced durability and performance in demanding environments. It is rated for a maximum operating temperature of 100 °C and a minimum of -50 °C, enabling its use in a wide range of applications.

The connector is compliant with multiple standards, including UL 1059 and IEC 60664-1, with a rated voltage of 300 V and a rated current of 18.5 A under specified conditions. Its tinned copper-manganese contacts provide excellent conductivity and corrosion resistance.

Approval certifications include CSA, EAC, and UR, affirming its adherence to international safety standards. The product family associated with this connector is the OMNIMATE Signal - series BL/SL 5.08, classified under EClass 9.0 and UNSPSC 30-21-18-10. The connector is packaged in a box with dimensions of 35 mm x 115 mm x 165 mm.
