Weidmuller 1885260000

The LSF-SMT 3.50/10/135 1.5SN BK TU terminal is designed for use on printed circuit boards, accommodating a pitch of 3.5 mm and a conductor outlet direction of 135°. This component features a total of 10 poles and utilizes a PUSH IN wire connection method, allowing for efficient installation.

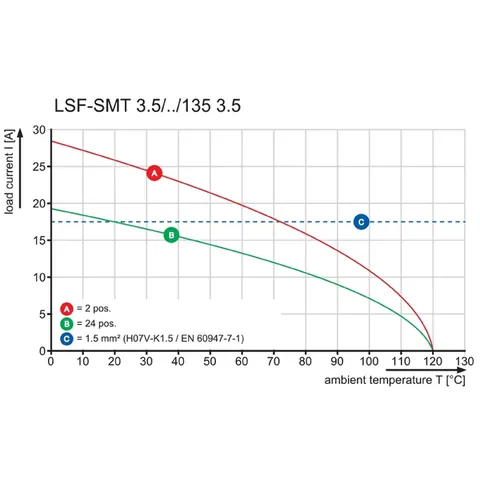

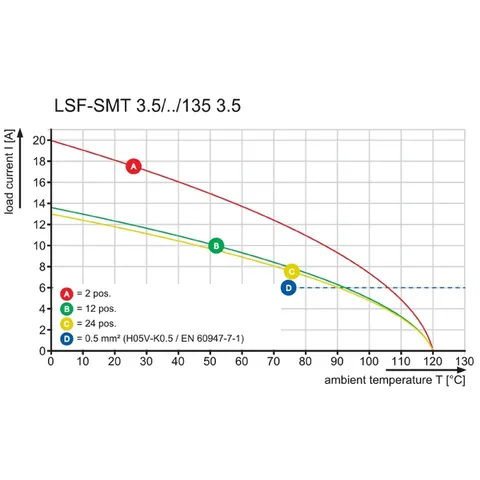

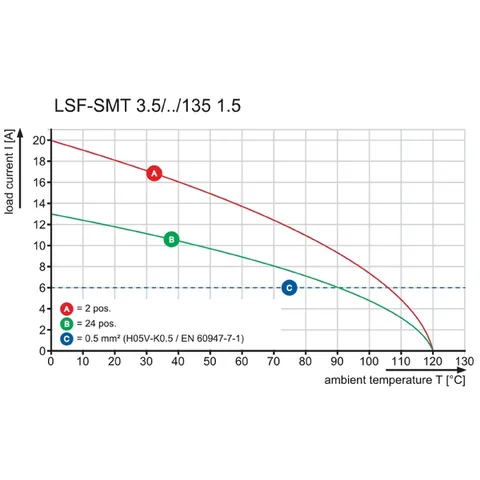

With a rated voltage of 300 V and a rated current of up to 12 A for Use Group B according to UL 1059 standards, this terminal is suitable for various applications. The component is tested according to IEC standards, ensuring reliability in operation with a rated current of 17.5 A for a minimum number of poles at 20°C. The insulation strength is rated at ≥ 108 Ω, supporting its performance in demanding environments.

The terminal is constructed from LCP GF insulating material, colored black, and includes operational elements made from PPA GF. It complies with multiple certifications, including cURus and CSA, and features a flammability rating of V-0 based on UL 94. The operating temperature ranges from -50 °C to 120 °C, making it suitable for a variety of conditions.

For additional protection, this terminal offers a touch-safe design complying with DIN VDE standards. It is packaged in tubes for easy handling and storage. The Designation Code for this product is included for reference in regulatory contexts.
