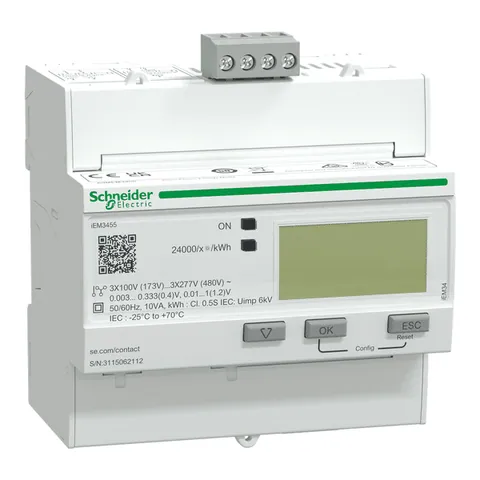

A9MEM3455

Additional Information

Part Number

A9MEM3455

UNSPSC

39121117

Tariff Code

9028300000

Country of Origin

CN

Complementary

Network Frequency

60 Hz || 50 Hz

Communication Port Support

screw terminal block RS485

Output Voltage

5...40 V DC@50 mA

Sampling Rate

32 samples/cycle

Number Of Outputs

1 digital (static)

Mounting Support

DIN rail

Maximum Value Measured

99999999.9 kWh || 99999999 MWh

Standards

BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 61010-1:2010 || EN 61010-1:2010 || IEC 61010-1:2010 || UL 61010-1:2010 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || ANSI C12.20

Type Of Measurement

active and reactive energy || active and reactive power || current || voltage

Communication Port Protocol

Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none

Product Certifications

CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || KZ || RCM

Number Of Inputs

1 digital 0...5 V/11...40 V 24 V DC

Measurement Current

1-32767000 mA

Wire Stripping Length

input/output circuit: 6 mm || voltage circuit: 8 mm || current circuit: 8 mm || communication: 7 mm

Connections - Terminals

current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm² || input/output circuit screw terminals 1.5-1.5 mm² || communication screw terminals 2.5-2.5 mm²

Information Displayed

tariff 4)

Mounting Mode

clip-on

Local Signalling

Green indicator light power ON || Yellow flashing LED accuracy checking || alarm overload || Yellow indicator light communications are active on the Modbus port (Modbus)

Technology Type

electronic

Poles Description

3P + N || 1P + N || 3P

Analogue Input Type

split core current transducer 0.333 V or 1 V

Display Type

LCD display

Tightening Torque

input/output circuit 0.5-0.5 N.m Philips || voltage circuit 0.5-0.5 N.m Philips || current circuit 0.8-0.8 N.m pozidriv || communication 0.5-0.5 N.m Philips

Device Application

sub billing || multi-tariff || partial meter

Metering Type

active, reactive, apparent energy (signed, four quadrant)

Accuracy Class

class 0.5S active energy IEC 62053-22 || class 0.5S active energy ANSI C12.20

Rated Voltage

100-277 V +/- 20 % || 173-480 V +/- 20 %

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP111276EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI111261EN_V1

Eu Rohs Directive

Compliant with Exemptions

Environment

Ik Degree Of Protection

IK08

Height

87 mm

Ambient Air Temperature For Operation

-25-70 °C - IEC

Pollution Degree

2

9 Mm Pitches

10

Color

White

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

5-95 % 36-36 °C

Ip Degree Of Protection

front panel IP40 IEC 60529 || body IP20 IEC 60529

Width

90 mm

Depth

69 mm

Operating Altitude

< 9842.52 ft (3000 m)

Specifications

Product Or Component Type

energy meter

Product Name

Acti9 iEM3000

Range

Acti9

Device Short Name

iEM3455
