Schneider Electric
LVCT00603S

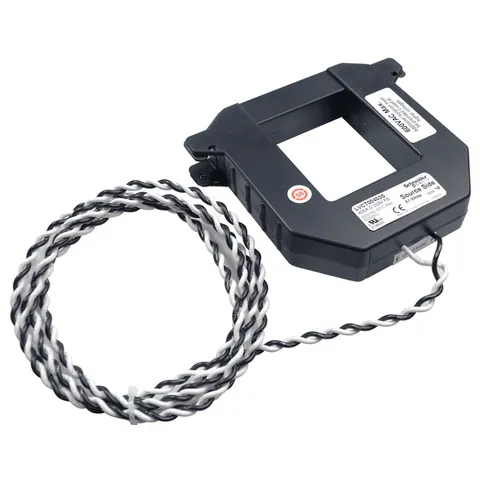

LV CT 600 A - 0.333 V output - split core CT - 62 mm x 132 mm
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€77.63
Additional Information
- Part Number
- LVCT00603S
- UNSPSC
- 39121529
- Tariff Code
- 8504314035
- Country of Origin
- US
Environment
- Ambient Air Temperature For Operation
- -15-60 °C
- Net Weight
- 0.58 kg
- Depth
- 30 mm
- Ambient Air Temperature For Storage
- -40-70 °C
- Relative Humidity
- 95-95 %
- Width
- internal 62 mm || external 151 mm
- Height
- internal 73 mm || external 132 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
Complementary
- Range Compatibility
- PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter || PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter || PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter || PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter || PowerLogic PowerLogic EM3500 EM3502 energy meter || PowerLogic PowerLogic EM3500 EM3550 energy meter || PowerLogic PowerLogic EM3500 EM3555 energy meter || PowerLogic PowerLogic EM3500 EM3560 energy meter || PowerLogic PowerLogic EM3500 EM3561 energy meter || PowerLogic PowerLogic EM4200 EM4235 energy meter || PowerLogic PowerLogic EM4200 EM4236 energy meter || PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter || PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter || Acti 9 Acti9 iEM3000 iEM3455 energy meter || Acti 9 Acti9 iEM3000 iEM3465 energy meter
- Measurement Accuracy
- 1 % 10...100 %
Specifications
- Network Frequency
- 50/60 Hz
- Product Destination
- BCPM || BCPMSC || Enercept || iEM3000 || EM3500 || EM4200 || EM4900
- Electrical Connection
- cable 1.8 m AWG 18) 600 V
- Accessory / Separate Part Category
- measurement accessory
- Product Or Component Type
- current transformer
- Range
- PowerLogic
- Output Voltage
- 0.333 V
- Line Rated Current
- 600 A
- Current Transformer Type
- split core balance
- Device Short Name
- LVCT
Dokumenty
Data Sheet
