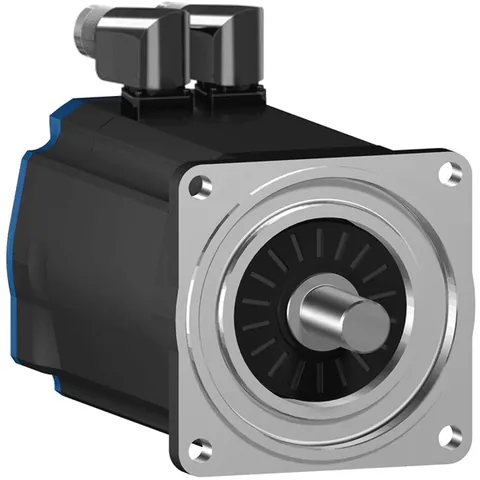

Schneider Electric BSH1001P11A2A

This product is part of the Lexium range by Schneider Electric, offering motion servo drives and servo motors. The 8-pole AC servo motor features a low moment of inertia with a maximum mechanical speed of 6000RPM and an IP54 parallel keyed shaft without holding brake.

It is equipped with a single-turn (131072 points/turn) SinCos Hiperface® high-resolution absolute encoder, providing an angular shaft position precise to less than ±1.3 arc minutes. This BSH servo motor satisfies requirements for precision and high dynamic performance due to its low rotor inertia.

The motor is compact and offers a high power density. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 3.5A, and a maximum continuous power of 1.6W. The shaft dimensions are 19mm (Diameter) x 40mm (Length).

It is furnished with rotatable right-angled connectors for electrical connection. It is an IP50 rated product. Its dimensions are 168.5mm (Length) x 100mm (Width), centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It weighs 4.2kg.

This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system.

The encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo...
