Schneider Electric BSH1004P11A2A

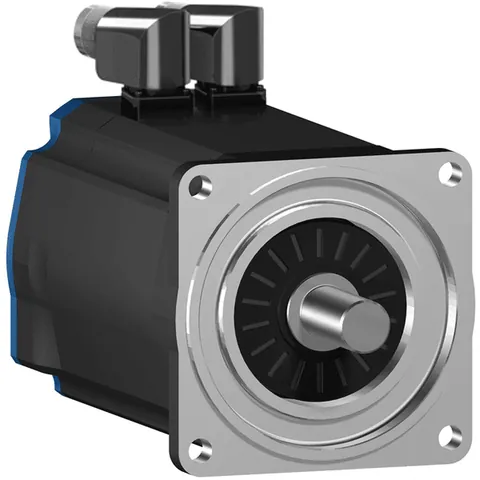

The Lexium range offers motion servo drives and servo motors, including the 8-pole AC servo motor. This product features a low moment of inertia with a maximum mechanical speed of 6000RPM and an IP54 parallel keyed shaft without holding brake.

It is equipped with a single-turn (131072 points/turn) SinCos Hiperface® high-resolution absolute encoder, providing an angular shaft position precise to less than ±1.3 arc minutes. The BSH servo motor satisfies requirements for precision and high dynamic performance due to its low rotor inertia.

The servo motor is compact and offers a high power density. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 6.2A, and a maximum continuous power of 3.64W. The shaft dimensions are 24mm (Diameter) x 50mm (Length). It is furnished with rotatable right-angled connectors for electrical connection.

The product is an IP50 rated servo motor with dimensions of 276.5mm (Length) x 100mm (Width), centring collar dimensions of 3.5mm (Depth) x 95mm (Diameter) with a 115mm circle diameter of the mounting hole. It weighs 9.5kg.

This servo motor is compatible with Lexium 32, Lexium 05, and Lexium 15 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. The encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo...
