Schneider Electric BSH1002P31A2A
Schneider Electric Servo Motor BSH, Lexium 05, 3.4N.m, 2500rpm, 100mm, Keyed Shaft, Sincos Single Turn, Without Brake, IP65
1 / 1

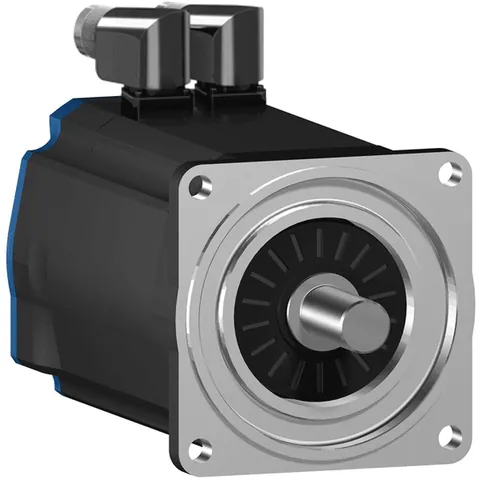

Zdjęcie katalogowe producenta
Opis produktu
Status Cyklu Życia:
This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 8-pole AC servo motor features a low moment of inertia with a maximum mechanical speed of 6000RPM and IP65 smooth shaft without holding brake. It is equipped with a single-turn (131072 points/turn) SinCos Hiperface® high-resolution absolute encoder giving an angular shaft position precise to less than ±1.3 arc minutes. BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia. It is compact, and offers a high power density.
Key Features:
Applications:
Wyślij zapytanie
Metody płatności:
Szczegóły oferty
- Najlepsza oferta od:
Zaufany dostawca — Rumunia, członek od 2023, 1–4 pracowników- Dostępność:
- 1 szt.Na zamówienieZaktualizowano: 22-08-2026
- Stan produktu:
- Nowy, Rynek wtórny
Nowy, Rynek wtórny - Nowy, nieużywany, nieuszkodzony przedmiot bez gwarancji producenta. Przedmiot może być dostarczony bez oryginalnego opakowania lub w zastępczym opakowaniu. Jeśli dostarczono, pudełko mogło zostać otwarte.
Sprzedawca jest odpowiedzialny za wysyłkę produktu i wystawienie faktury
Specyfikacje
- Marka
- Schneider Electric
- Device short name
- BSH
- Product or Component Type
- Servo motor
- Maximum mechanical speed
- 6000 rpm
- Continuous stall torque
- 3.4 N.m
- Peak stall torque
- 8 N.m
- Nominal output power
- 950 W
