Schneider Electric BSH1003P32A2A
Lexium 05, 7.8N.m, 2500rpm, 100mm, Keyed Shaft, Multi-turn SinCos Encoder, IP65
1 / 1

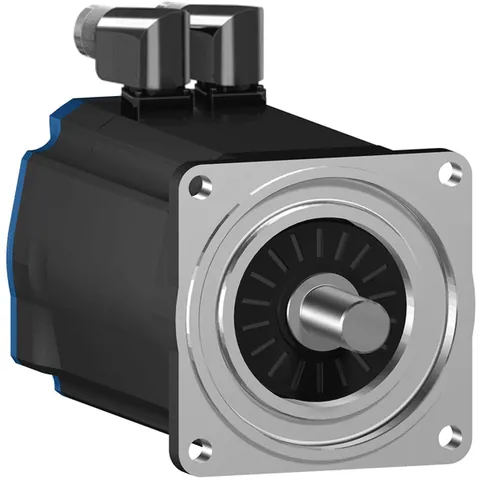

Zdjęcie katalogowe producenta
Opis produktu
Status Cyklu Życia:
The Lexium 05 servo motor is part of the Lexium range, offering motors from 0.4kW to 6kW. This 8-pole AC servo motor boasts a low moment of inertia and a maximum mechanical speed of 2500 RPM with a keyed shaft without holding brake.
It is equipped with a multi-turn (1,31,072 points/turn x 4096 turns) SinCos Hiperface® high resolution absolute encoder. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 6.6A and a maximum continuous power of 3.14W.
The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 and IP67 rated product. The length of this product is 240.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole.
It weighs 7.4kg. This range is compatible with Lexium 32, Lexium 15 and Lexium 05 servo drives. It supports 100mm international standard flange mount with a natural convection cooling system.
Wyślij zapytanie
Metody płatności:
Szczegóły oferty
- Najlepsza oferta od:
Zaufany dostawca — Rumunia, członek od 2023, 1–4 pracowników- Dostępność:
- 1 szt.Na zamówienieZaktualizowano: 22-08-2026
- Stan produktu:
- Nowy, Rynek wtórny
Nowy, Rynek wtórny - Nowy, nieużywany, nieuszkodzony przedmiot bez gwarancji producenta. Przedmiot może być dostarczony bez oryginalnego opakowania lub w zastępczym opakowaniu. Jeśli dostarczono, pudełko mogło zostać otwarte.
Sprzedawca jest odpowiedzialny za wysyłkę produktu i wystawienie faktury
Specyfikacje
- Marka
- Schneider Electric
- Maximum Mechanical Speed
- 6000 rpm
- Mounting Support
- international standard flange
- Holding Brake
- without
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Product Or Component Type
- servo motor
- Nominal Output Power
- 2000 W LXM32.D30N4 10 A, 400 V, three phase || 1700 W LXM15LD17N4, 230 V, three phase || 1700 W LXM15LD21M3, 230 V, three phase || 1800 W LXM05AD34N4, 380...480 V, three phase || 1800 W LXM05BD34N4, 380...480 V, three phase || 1800 W LXM05CD34N4, 380...480 V, three phase || 2000 W LXM15MD28N4, 400 V, three phase || 2000 W LXM15MD40N4, 400 V, three phase || 2200 W LXM15LD17N4, 400 V, three phase || 2200 W LXM15MD28N4, 480 V, three phase || 2200 W LXM15MD40N4, 480 V, three phase || 2600 W LXM32.D30N4 10 A, 480 V, three phase || 2300 W LXM15LD17N4, 480 V, three phase || 1100 W LXM05AD28M2, 200...240 V, single phase || 1100 W LXM05BD28M2, 200...240 V, single phase || 1100 W LXM05CD28M2, 200...240 V, single phase || 1100 W LXM05AD42M3X, 200...240 V, three phase || 1100 W LXM05BD42M3X, 200...240 V, three phase || 1100 W LXM05CD42M3X, 200...240 V, three phase || 1300 W LXM15LD28M3, 230 V, three phase
