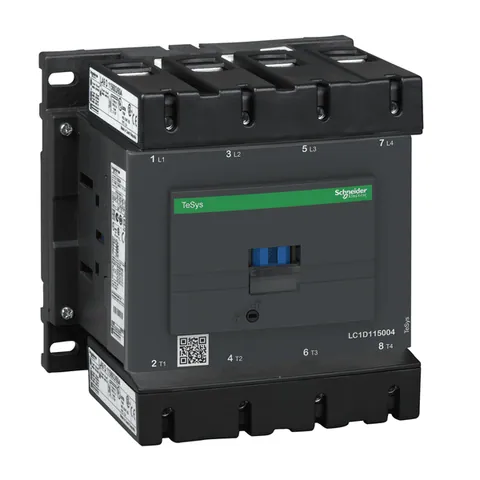

Schneider Electric LC1D115004F7

The IEC contactor is engineered for integration within control systems, suitable for creating motor starters across various applications. This unit features four normally open power contacts and is rated for a maximum resistive load of 200 amps. With a coil voltage of 110 VAC at 50/60 Hz, it is compatible with multiple mounting options including DIN rail or direct panel mounting.

Dimensions of this contactor are 158 mm in height, 150 mm in width, and 132 mm in depth, with a weight of 2.86 kg. The contactor is designed to comply with various standards including UL, CSA, IEC, and others, ensuring its applicability in diverse environments. The contactor's operational parameters include a rated operational current of 200 A at less than 60 °C at 440 V AC and a rated impulse withstand voltage of 8 kV.

For reliable connections, it employs screw clamp terminals for load and auxiliary connections. The extensive accessory line allows for customization to meet specific application requirements. Additionally, this unit adheres to RoHS/REACh directives, confirming its status as a Green Premium product, thereby ensuring compliance with environmental standards.
