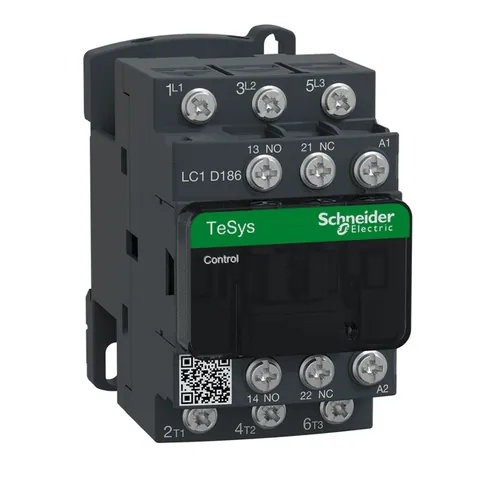

Schneider Electric LC1D186L7

The TeSys Deca contactor is an ideal solution for creating motor starters across various industries. It offers versatility and reliability with its non-reversing design, making it suitable for a broad spectrum of applications.

This particular model is rated at 18A inductive load, 3 pole IEC contactor, capable of handling up to 10HP at 480VAC, 3 phase. It can be mounted on DIN rail or directly on a panel for added convenience.

The TeSys Deca contactor is available in multiple ratings, catering to both inductive and resistive loads up to 150 full-load amps and 200 amps respectively. It comes with a 200VAC 50/60Hz coil for optimal performance.

This contactor is equipped with one normally open (NO) and one normally closed (NC) auxiliary contact as standard, ensuring efficient operation in various scenarios. The NC contact is mirror certified for enhanced reliability.

The contactor measures 3.03 inches in height, 1.77 inches in width, and 3.39 inches in depth, weighing approximately 0.73 lbs. It adheres to UL, CSA, IEC, CCC, EAC, and Marine standards, ensuring its durability and safety.

Moreover, it meets the RoHS/REACh requirements, making it an environmentally friendly choice. The extensive line of accessories further enhances its adaptability to meet diverse application needs.
