Schneider Electric
LADT26

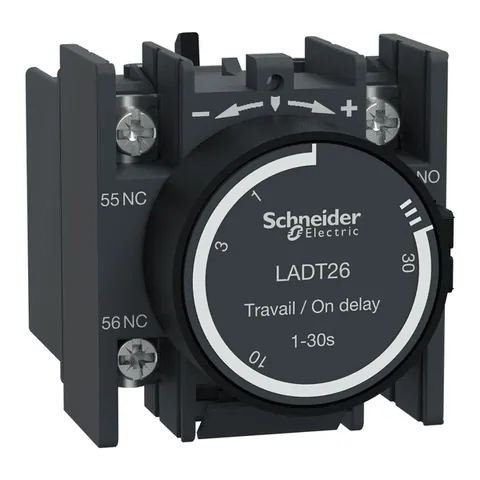

Time delay auxiliary contact block, TeSys Deca, 1NO + 1NC, on delay 1-30s, front, lugs-ring terminals
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Łącznie 20 części w magazynie od 11 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€24.11
Additional Information
- Part Number
- LADT26
- UNSPSC
- 39121529
- Tariff Code
- 8536509065
- Country of Origin
- FR
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Ambient Air Temperature For Storage
- -60-80 °C
- Environmental Characteristic
- normal environment
- Protective Treatment
- TH IEC 60068
- Operating Altitude
- 9842.52 ft (3000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110702
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Permissible Short-Time Rating
- 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
- Minimum Switching Current
- 5 mA
- Height
- 48 mm
- Protection Type
- gG fuse 10 A
- Insulation Resistance
- > 10 MOhm
- Irms Rated Making Capacity
- 140 A AC || 250 A DC
- Connections - Terminals
- lugs-ring terminals 8 mm)
- Minimum Switching Voltage
- 17 V
- Tightening Torque
- 1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
- Mechanical Durability
- 5 Mcycles
- Color
- dark grey
- Width
- 44 mm
- Depth
- 61 mm
Specifications
- Product Certifications
- CB || UL || CSA || CCC || EAC || UKCA
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- Standards
- UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN/IEC 60947-5-1
- Timer Type
- on delay
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Range Compatibility
- TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D
- Product Or Component Type
- time delay auxiliary contact block
- Product Name
- TeSys Deca
- Range
- TeSys || TeSys Deca
- Mounting Location
- front
- Pole Contact Composition
- 1 NO + 1 NC
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
- [Ie] Rated Operational Current
- 6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
- Time Delay Range
- 1...30 s
- Auxiliary Contacts Operation
- time delay
