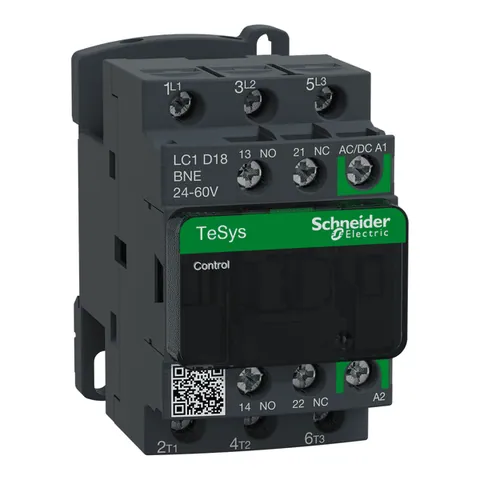

Schneider Electric LC1D18BNE

The TeSys Deca Green contactor is designed to provide seamless integration into control systems, making it an ideal choice for creating motor starters across diverse industries.

This 18A inductive 3-phase IEC contactor can be mounted on DIN rail or directly onto a panel. It offers both Horsepower and Kw motor ratings for international acceptance, with ratings ranging from 5HP at 200-208VAC to 15HP at 600VAC.

Equipped with an electronic coil that operates on a wide band voltage of 24-60V AC/DC and is energy efficient, this contactor also features one normally open (NO) and one normally closed (NC) auxiliary contact as standard. The NC contact is mirror certified for enhanced reliability.

Screw clamp terminals are used for load and auxiliary connections, ensuring secure and reliable connections. The contactor measures 3.03 inches in height, 1.77 inches in width, and 3.39 inches in depth, with a weight of 0.83 lbs.

This contactor is certified to UL, CSA, IEC, CCC, EAC, and Marine standards, making it suitable for various applications. It also meets the requirements of RoHS/REACh, positioning it as a Green Premium product.
