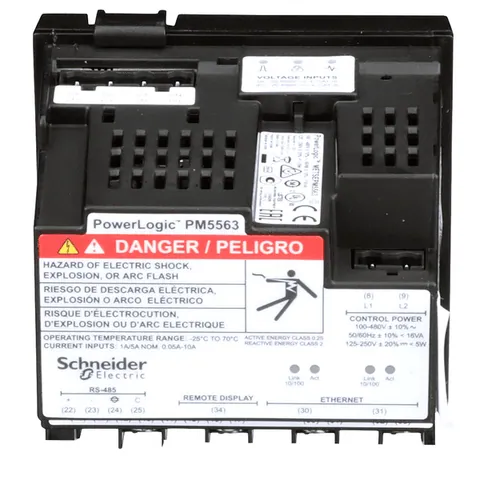

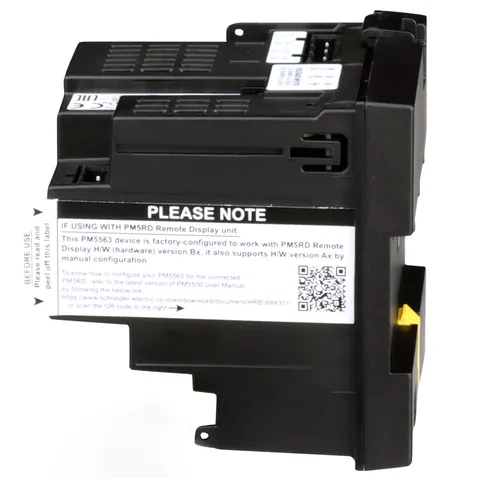

METSEPM5563

Additional Information

Part Number

METSEPM5563

UNSPSC

39121106

Tariff Code

9028300000

Country of Origin

IN

Complementary

Network Frequency

60 Hz || 50 Hz

Communication Port Support

RS485 || ETHERNET

Power Quality Analysis

up to the 63rd harmonic

Height

96 mm

Measurement Voltage

20-400 V AC 45...65 Hz between phase and neutral || 20-828 V AC 45...65 Hz between phases

Sampling Rate

128 samples/cycle

Memory Capacity

1.1 MB

Number Of Outputs

2 digital

Standards

EN 50470-1 || IEC 60529 || IEC 62053-24 || UL 61010-1 || IEC 62053-22:2020 || IEC 61557-12:2015 || EN 50470-3 || ANSI C12.20 || IEC 62053-23:2020 || IEC 62052-11:2020 || IEC 62052-31:2015

Product Certifications

CE IEC 61010-1 || cULus UL 61010-1 || BTL

Type Of Measurement

current || voltage || frequency || power factor || energy || active and reactive power

Communication Port Protocol

Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V || JBUS || Modbus TCP/IP 10/100 Mbit/s 2500 V || Ethernet Modbus TCP/IP daisy chain || BACnet IP || DNP3 over ethernet

Frequency Measurement Range

45-65 Hz

Ride-Through Time

35 ms 120 V AC typical || 129 ms 230 V AC typical || 50 ms 125 V DC typical

Number Of Inputs

4 digital

Net Weight

450 g

Depth

72 mm

Measurement Current

50-10000 mA

Connections - Terminals

voltage circuit screw terminal block4 || control circuit screw terminal block2 || current transformer screw terminal block6 || RS485 link screw terminal block4 || digital input screw terminal block8 || digital output screw terminal block4 || Ethernet network RJ45 connector2

Information Displayed

tariff 8)

[Us] Rated Supply Voltage

100...300 V DC || 90...528 V AC 45...65 Hz

Mounting Mode

clip-on

Measurement Accuracy

apparent power +/- 0.5 % || frequency +/- 0.05 % || active energy +/- 0.2 % || reactive energy +/- 1 % || active power +/- 0.2 % || voltage +/- 0.1 % || power factor +/- 0.005 || current +/- 0.15 % || reactive power +/- 1 %

Ethernet Service

SNMP-Traps || SNTP client

Mounting Support

DIN rail

Communication Gateway

Ethernet/serial

Poles Description

1P + N || 3P || 3P + N

Data Recording

maintenance logs || event logs || alarm logs || time stamping || data logs || min/max of instantaneous values

Line Rated Current

5 A || 1 A

Analogue Input Type

voltage (impedance 5 MOhm) || current (impedance <= 0.3 mOhm)

Web Services

alarm notification by e-mail || diagnostic via predefined web pages || web server || real time viewing of data

Width

96 mm

Display Type

Without Display

Device Application

power monitoring || WAGES metering || gateway || multi-tariff

Metering Type

measured neutral current || calculated ground current

Accuracy Class

class 0.2S active energy IEC 62053-22

Maximum Power Consumption In Va

16 VA 480 V

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1412028EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1412028EN

Eu Rohs Directive

Compliant

Specifications

Product Or Component Type

power meter

Product Name

PowerLogic PM5000

Range

PowerLogic

Device Short Name

PM5563

Environment

Ambient Air Temperature For Operation

-25-70 °C

Electromagnetic Compatibility

limits for harmonic current emissions class A conforming to IEC 61000-3-2 || conducted RF disturbances level 3 conforming to IEC 61000-4-6 || magnetic field at power frequency level 4 conforming to IEC 61000-4-8 || conducted and radiated emissions class B conforming to EN 55022 || limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 || electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 || surge immunity test level 4 conforming to IEC 61000-4-5 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Pollution Degree

2

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

5-95 % 50-50 °C non-condensing

Ip Degree Of Protection

display IP54 IEC 60529 || rear IP30 IEC 60529

Operating Altitude

<= 9842.52 ft (3000 m)
