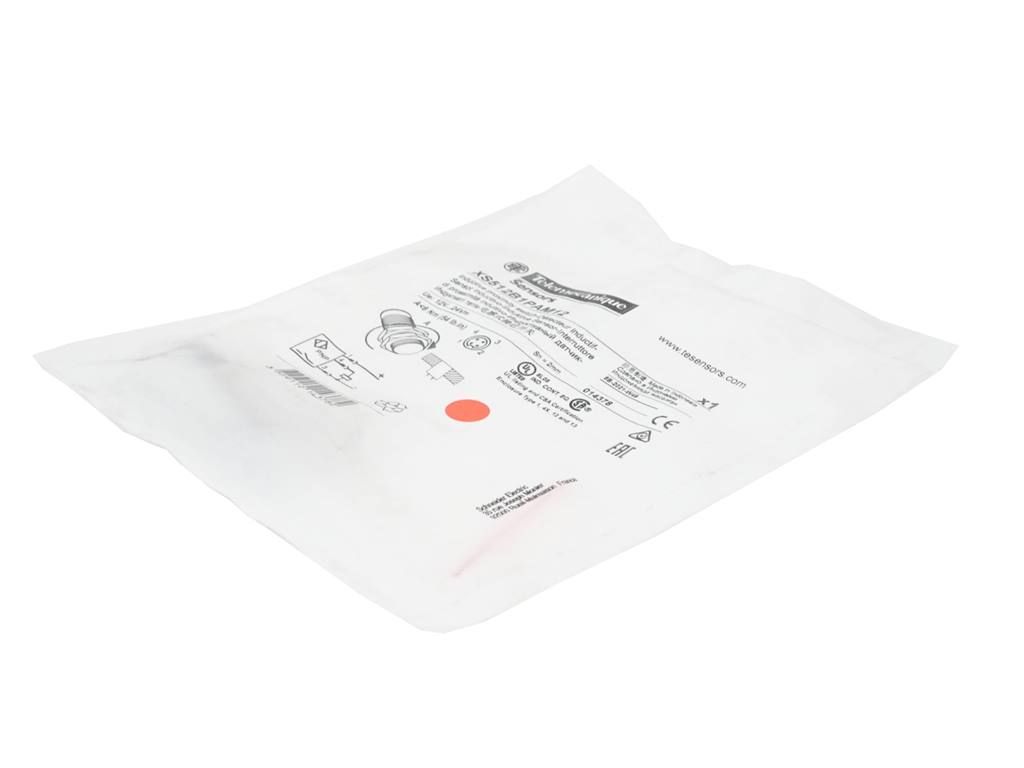

Schneider Electric XS512B1PAM12

The XS5 cylindrical inductive proximity sensor is designed with an M12 thread and features a sensing face made from PPS. Encased in a nickel-plated brass housing, it offers excellent corrosion resistance and magnetic shielding, enhancing its operational accuracy in environments with magnetic disturbances. This sensor is suitable for flush mounting, allowing direct installation on surfaces or brackets using its outer thread and twin nuts.

With a nominal sensing distance of 2mm, the sensor operates efficiently across a wide temperature range of -25°C to +70°C, making it suitable for various industrial applications. Its robust design includes IP65, IP68, and IP69K protection ratings, ensuring functionality in harsh conditions. The device is equipped with 4 LED indicators for easy monitoring of the sensor's operational status, facilitating setup and troubleshooting.

Standardized with a male M12 connector, this sensor is compatible with existing market cabling. It supports a PNP discrete output with a switching capacity of up to 200 mA, and provides overload and short-circuit protection. Its maximum switching frequency is 5000 Hz, ensuring rapid response times in dynamic applications.

This product holds certifications from UL and CSA, confirming its compliance with relevant safety and operational standards. The ambient temperature specifications further enhance its appeal for diverse industrial settings.
