Harting 02041601101

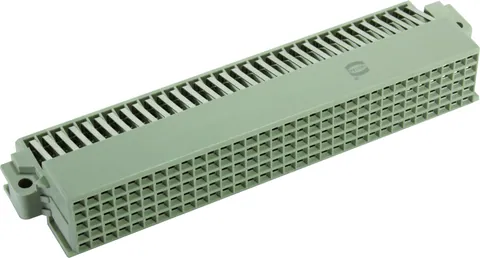

Angled Female Connector with Wave Soldering Termination
Product Description
Introducing the Angled Female Connector with Wave Soldering Termination, a high-performance solution designed to meet the demanding requirements of modern industrial applications. This connector boasts a robust copper alloy construction, ensuring reliable electrical conductivity and durability. The angled design facilitates easy mating and termination, while the wave soldering process guarantees secure connections.
With a rated current capacity of 1A and an impressive 160 contacts, this connector is well-equipped to handle high-density applications. It features a noble metal finish on the mating side for enhanced conductivity, and a Sn over Ni termination side for optimal performance level 1, according to IEC 61076-4-113 standards.
The connector comes with a fixing flange for secure PCB mounting, constructed from thermoplastic resin, glass-fibre filled. The RAL 7032 (pebble grey) color adds an aesthetic touch to your industrial setup without compromising functionality.
Need more information?
Offer details
- Offer from:
Trusted supplier — Latvia, member since 2023, 10–19 employees - Availability:
- On requestLead time: 7 days
- Warranty:
- 12 months
- Condition:
- New Surplus
Specifications
- Brand
- Harting
- Contact rows
- 5
- Contact spacing (termination side)
- 2.54 mm
- Contact spacing (mating side)
- 2.54 mm
- Rated current
- Rated current measured at 20 °C, see derating curve for details
- Clearance distance
- 0.6 mm between 2 rows (a, b, c) || 0.6 mm between 2 rows (d, z) || 0.8 mm between 2 contacts in a row (a, b, c) || 0.8 mm between 2 contacts in a row (d, z)
- Creepage distance
- 0.6 mm between 2 rows (a, b, c) || 0.6 mm between 2 rows (d, z) || 0.8 mm between 2 contacts in a row (a, b, c) || 0.8 mm between 2 contacts in a row (d, z)
Available Offers
(14)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability On requestLead time: 7 days | SupplierLatviaTrusted supplier — member since 2023, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability 51 pcs. Updated at: 19-09-2026In-Stock | Supplier United KingdomTrusted supplier — member since 2022, 500+ employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability 45 pcs. Updated at: 19-09-2026In-Stock | Supplier RomaniaTrusted supplier — member since 2023, 100–499 employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability 51 pcs. Updated at: 19-09-2026In-Stock | Supplier CzechiaTrusted supplier — member since 2023 | Warranty Not specified | |
| Condition New Factory Sealed | Availability 51 pcs. Updated at: 19-09-2026In-Stock | Supplier GermanyTrusted supplier — member since 2023 | Warranty Not specified | |
| Condition New Factory Sealed | Availability 57 pcs. Updated at: 19-09-2026In-Stock | Supplier SpainTrusted supplier — member since 2023 | Warranty Not specified |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Harting 02041601101, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 16-09-2026
