Harting 09212403101

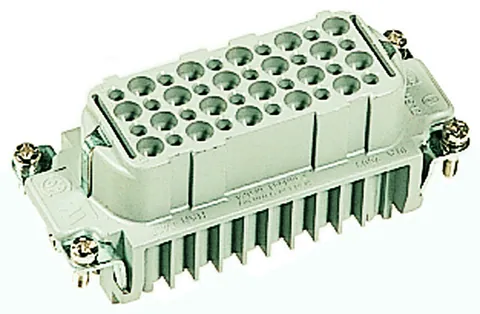

Crimp Termination Inserts, Female, Size 16 B, 40 Contacts
Product Description
This product features crimp termination inserts with a female design, specifically in size 16 B, accommodating 40 contacts. Constructed from polycarbonate (PC) with a color specification of RAL 7032 (pebble grey), these inserts are capable of handling a rated current of 10 A and a rated voltage of 250 V.
The conductor cross-section ranges from 0.14 to 2.5 mm², ensuring compatibility with a variety of applications. The insulation resistance exceeds 10, with a rated impulse voltage of 4 kV, making it suitable for demanding environments. The inserts can endure temperatures from -40 to +125 °C and are designed for a minimum of 10,000 mating cycles with other HMC components.
These inserts adhere to several standards, including EN 60664-1 and IEC 61984, and have received approvals from organizations such as DNV GL and UL/CSA. Notably, they are RoHS compliant and do not contain any substances restricted by REACH.
For further specification, it is important to note that crimp contacts should be ordered separately. This product is identified by the designation code: Inserts for industrial connectors.
Need more information?
Offer details
- Offer from:
Trusted supplier — Latvia, member since 2023, 10–19 employees - Availability:
- On requestLead time: 7 days
- Warranty:
- 12 months
- Condition:
- New Surplus
Specifications
- Brand
- Harting
- Conductor cross-section
- 0.14 ... 2.5 mm²
- Rated current
- 10 A
- Rated voltage
- 250 V
- Rated impulse voltage
- 4 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
Available Offers
(15)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability On requestLead time: 7 days | SupplierLatviaTrusted supplier — member since 2023, 10–19 employees | Warranty 12 months | |
| Condition New Surplus | Availability 5 pcs. Updated at: 19-09-2026In-Stock | Supplier PolandTrusted supplier — member since 2021, 500+ employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability 29 pcs. Updated at: 19-09-2026In-Stock | Supplier RomaniaTrusted supplier — member since 2023, 100–499 employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability 29 pcs. Updated at: 19-09-2026In-Stock | Supplier United KingdomTrusted supplier — member since 2022, 500+ employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability 36 pcs. Updated at: 19-09-2026In-Stock | Supplier GermanyTrusted supplier — member since 2023 | Warranty Not specified | |
| Condition New Factory Sealed | Availability 36 pcs. Updated at: 19-09-2026In-Stock | Supplier CzechiaTrusted supplier — member since 2023 | Warranty Not specified |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Harting 09212403101, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 16-09-2026
