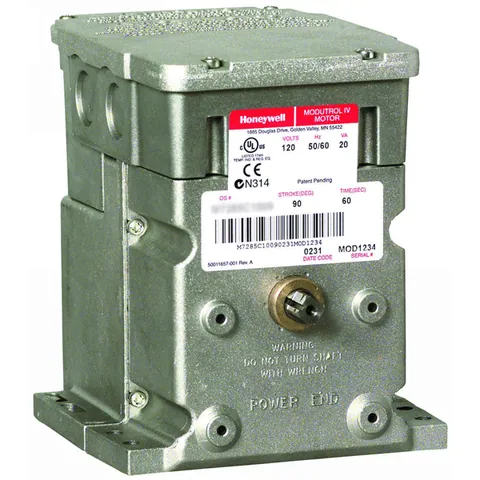

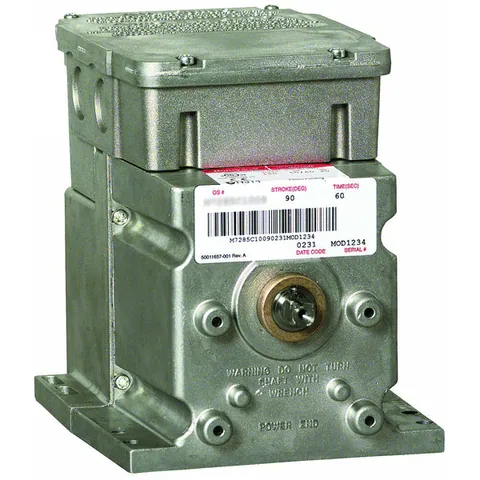

Honeywell M9194E1000/U

The Rotary Actuators, SERIES 2 MOD IV MOTOR is engineered for effective operation in HVAC systems, featuring compatibility with globe valves utilizing Q5001 linkage. This actuator operates with a supply voltage of 24 V AC and offers a torque rating of 300 in·lb (34 Nm), making it suitable for a range of applications.

With dimensions of 5.5 in (140 mm) in width, 6.4375 in (164 mm) in height, and 7.3125 in (185 mm) in depth, it is designed for foot mounting. The actuator supports a runtime of 120 to 240 seconds and is equipped with quick-connect terminals for easy installation. It also includes features such as adjustable stroke ranging from 90° to 160° symmetrical and compatibility with external auxiliary switches (Q607).

Operating under a NEMA 3 rating, the device can function in ambient temperatures as low as -40 °F (-40 °C) and as high as 150 °F (60 °C). Its housing is constructed from die-cast aluminum, ensuring durability. The actuator is compliant with various regulatory standards, including EN55011 for emission and EN50082-2 for immunity.

Overall, the Rotary Actuators, SERIES 2 MOD IV MOTOR delivers reliable performance with a fail-in-place power loss action and is suitable for applications that require precise control and durable construction.
